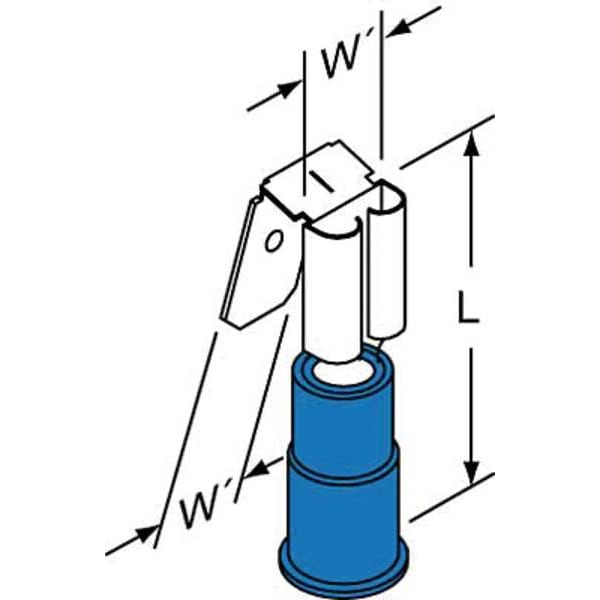

Desconectador de respaldo, azul, paquete de 1000
| Item | Piggyback Disconnect |
|---|---|
| Insulation | Partial |
| Insulation Color | Blue |
| Wire Range | 16 to 14 AWG |
| Insulation Type | Nylon |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.91 in |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Barrel Inside Dia. | 0.09 in |
| Connection Material | Tin-Plated Brass |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Contact Material | Brass |
| Tab Thickness | 0.032 in |
| Maximum Wire Size | 14 AWG |
| Maximum Voltage | 820 V |
| Disconnect Style | Piggyback |
| Special Features | Connects a Male or Female Counterpart, The Tongue Portion with Fingers Grip a Male Quick-Slide and a Tongue Extension Grips a Female Quick-Slide |
| Insulation Material | Nylon |
| Contact Finish | Tin |
| Tab Width | 1/4 in |
| Barrel Style | Insulation Grip |
| Terminal Type | Socket, Tab |
| Maximum Operating Temperature | 221 deg F |
| Seam Style | Butted |
| Insulation Coverage | Partial Coverage |
| RoHS Compliant | Yes |
| Barrel Inside Diameter | 0.09 in |
| Termination Style | Crimp |
| Minimum Wire Size | 16 AWG |
| Minimum Operating Temperature | -40 deg F |
| Maximum Insulation Outer Diameter | 0.15 in |
| Terminal Style | Piggy-back |
| Mates with Female Width | 1/4 in |
| Mates with Male Tab Width (W') | 1/4 in |
| Fastener Orientation | Male-Female |
| Disconnect Type | Male |
| Maximum Operating Temperature (Celsius) | 105°C |
| Maximum Insulation Outside Diameter | 0.145 in |
| Package Quantity | 1000 |
