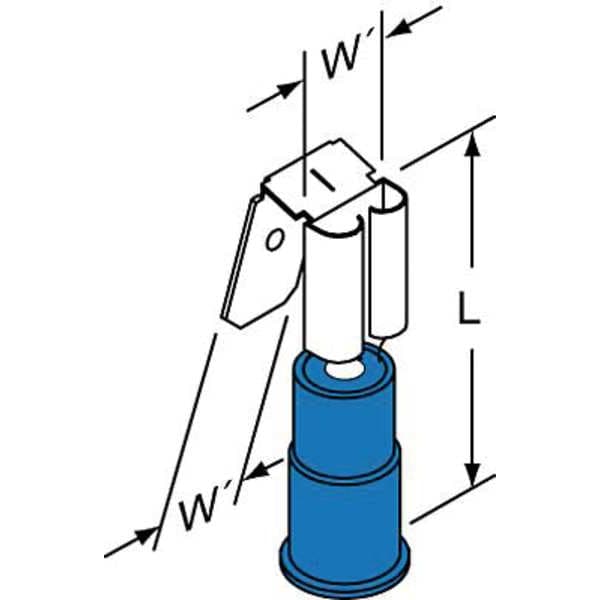

Desconexión Piggyback, Azul, calibre 16-14, paquete con 1000
| Item | Piggyback Disconnect |
|---|---|
| Insulation | Partial |
| Insulation Color | Blue |
| Wire Range | 16 to 14 AWG |
| Insulation Type | Vinyl |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.87 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 0.09 in |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Connection Material | Tin-Plated Copper |
| Terminal Type | Disconnect |
| Mates with Female Width | 1/4 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| Terminal Style | Piggy-back |
| Minimum Conductor Size | 16 AWG |
| Mates with Male Tab Width (W') | 1/4 in |
| Barrel Length | 0.23 in |
| Connection Width | 1/4 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Maximum Conductor Size | 14 AWG |
| Fastener Orientation | Male-Female |
| Pad Width | 1/4 in |
| Bullet Diameter | 0.156 in |
| Disconnect Type | Female Disconnect |
| Barrel Inside Diameter | 0.09 in |
| Package Quantity | 1000 |
