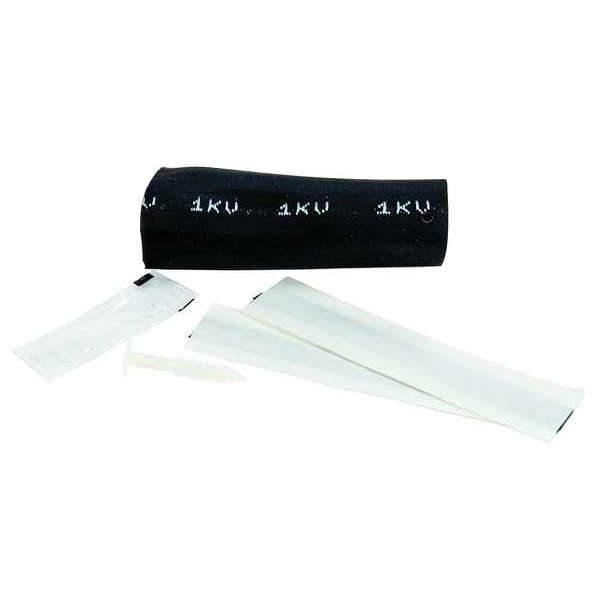

Resin Comp Splice Kit, 194F, Blk, 8000V
| Item | Resin Compound Splice Kit |
|---|---|
| Color | Black |
| Material | EPDM Rubber |
| Connection Type | Pigtail |
| Overall Length | 11 in |
| Wire Range | 2 AWG to 250 kcmil |
| Max. Voltage | 8,000 V |
| Voltage Rating | 5000V to 8000V |
| Max. Temp. | 194 deg F |
| Temp. Range | Up to 194 Degrees F |
| Standards | CSA Approved |
| Includes | (3) Bags of Solvent Cleaning Cloths, (3) Instruction Sheets, (3) Locking Pins, (3) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Scotch(R) Linerless Rubber Splicing Tape 130C Strips, (3) Tubes of Silicone Grease |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Tubing Wall Type | Thick |
| Termination Style | Splice |
| Compatible with Series | 30000 |
| Number of Splices | 3 |
| For Wire Type | Motor Lead Cable |
| Maximum Operating Temperature | 194 deg F |
| Contact Material | Copper |
| Heat Shrink Material | EPDM Rubber |
| Number of Pieces | 18 |
| RoHS Compliant | Yes |
| Resistance Properties | Abrasion-Resistant, Puncture-Resistant |
| Maximum Voltage | 8,000 V |
| Insulation Coverage | Full Coverage |
| Resin Material | Resin |
| Compatible with Product Type | Pigtail, Non-Shielded Cable Connections |
| Maximum Wire Size | 250 kcmil |
| Minimum Wire Size | 2 AWG |
| Insulation Material | EPDM Rubber |
| Body Material | EPDM Rubber |
| Tensile Strength | 1,400 psi |
| Insulation Outside Diameter | 0.53 to 0.88 in |
| Maximum Bolt Length | 1-1/4 in |
| Cable Shielding | Non-shielded |
| Splice Type | Pigtail Only |
| Insulation Outside Diameter Range | 0.53 to 0.88 in |
| Maximum Operating Voltage | 8 kV |
| Voltage | 5 kV - 8 kV |
| Range Feeder Cable (AWG & kcmil) | 1/0-250 |
| Lug Length | 11 in |
| Package Quantity | 1 |
