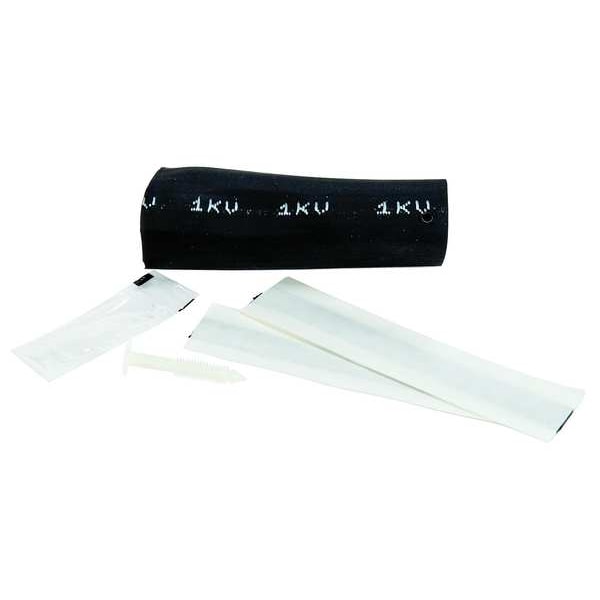

Resin Comp Splice Kit, 2 AWG to 250 kcmil
| Item | Resin Compound Splice Kit |
|---|---|
| Wire Range | 2 AWG to 250 kcmil |
| Material | EPDM Rubber |
| Connection Type | Inline |
| Temp. Range | Up to 194 Degrees F |
| Includes | (1) Inline Splice Cover, (1) Instruction Sheet, (1) Tubes of Silicone Grease, (3) Adapter Sleeves |
| Color | Black |
| Max. Voltage | 1,000 V |
| Overall Length | 9 in |
| Max. Temp. | 194 deg F |
| Voltage Rating | 1000V |
| Standards | CSA Approved |
| Heat Shrink Material | EPDM Rubber |
| Body Material | EPDM Rubber |
| Insulation Material | EPDM Rubber |
| Resin Material | Resin |
| Tubing Wall Type | Thick |
| Number of Pieces | 5 |
| Number of Splices | 3 |
| Tensile Strength | 1,400 psi |
| Contact Material | Copper |
| Insulation Coverage | Full Coverage |
| Maximum Conductors | 1 |
| RoHS Compliant | Yes |
| Termination Style | Splice |
| Maximum Operating Temperature | 194 deg F |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Resistance Properties | Abrasion-Resistant, Puncture-Resistant |
| Minimum Wire Size | 2 AWG |
| Maximum Voltage | 1,000 V |
| Compatible with Product Type | 1-Hole Lug Connections, Inline |
| Maximum Wire Size | 250 kcmil |
| For Wire Type | Motor Lead Cable |
| Compatible with Series | 30000 |
| Maximum Operating Voltage | 1 kV |
| Voltage | 1 kV |
| Splice Cover Length | 9 to 10 in |
| Range Feeder Cable (AWG & kcmil) | 1/0-250 |
| Maximum Bolt Length | 3/4 in |
| Splice Type | Inline |
| Insulation Outside Diameter by Conductor Size | 2-1/0 AWG (0.40-0.54 Inch), 1/0 AWG-250 kcmil (0.52-0.80 Inch) |
| Splice Cover Inner Diameter | 2-1/0 AWG 0.50 in / 1/0 AWG-250 kcmil 0.42 in |
| Insulation Outside Diameter Range | 2-1/0 AWG 0.40-0.54 in / 1/0 AWG-250 kcmil 0.52-0.80 in |
| Package Quantity | 1 |
