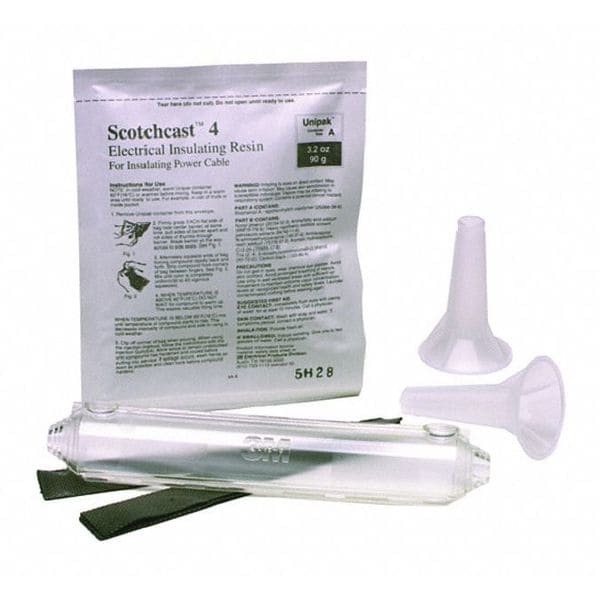

Resin Comp Splice Kit, 22 to 10 AWG, 194F
| Item | Resin Compound Splice Kit |
|---|---|
| Wire Range | 22 to 10 AWG |
| Container Type | Closed Mixing Pouch |
| Material | Resin with Plastic EPDM Rubber Mold |
| Temp. Range | Up to 194 Degrees F |
| Includes | (2) Pour Spouts, 2-Part Trans Mold Body, Bonding Jumper Wire with Clips, Instruction Sheet, Nonconductive Abrasive Cloth, Resin Compound, Rubber-Splicing Tape 23 |
| Color | Black |
| Max. Voltage | 1,000 V |
| Overall Length | 7.1 in |
| Max. Temp. | 194 deg F |
| Voltage Rating | 1000V |
| Standards | RoHS 2011/65/EU Compliant |
| Maximum Voltage | 1,000 V |
| Number of Splices | 1 |
| Minimum Wire Size | 22 AWG |
| Resistance Properties | Moisture-Resistant |
| Maximum Operating Temperature | 194 deg F |
| Number of Pieces | 7 |
| Resin Material | Resin |
| Screw Material | Not Applicable |
| Compatible with Product Type | Signal and Control Cables |
| Termination Style | Splice |
| For Maximum Cable OD | 0.63 in |
| Tensile Strength | 600 psi |
| Barrel Length | Not Applicable |
| Seam Style | Butted |
| Stud Size | Not Applicable |
| For Wire Type | Signal and Control Cables |
| Screw Finish | Not Applicable |
| Insulation Material | EPDM Rubber |
| Body Material | Polypropylene |
| RoHS Compliant | Yes |
| Maximum Wire Size | 10 AWG |
| Voltage | 1 kV |
| Package Quantity | 1 |
