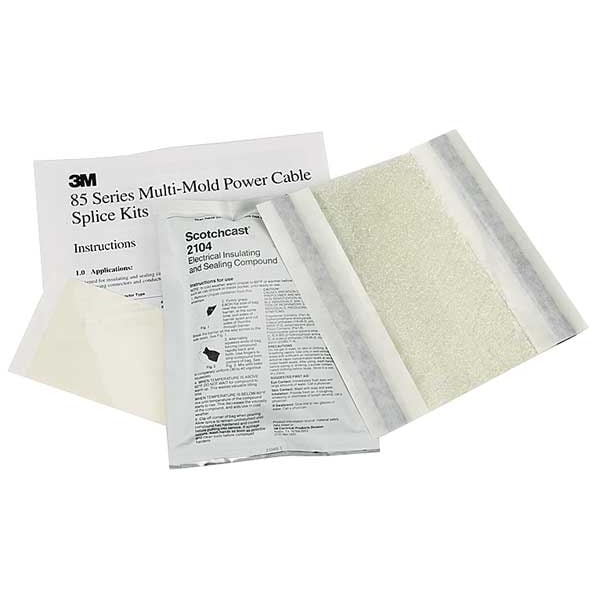

Kit de empalme de resina, de calibre 4 AWG a 250 kcmil.
| Item | Resin Compound Splice Kit |
|---|---|
| Wire Range | 4/0 AWG to 250 kcmil |
| Container Type | Closed Mixing Pouch |
| Material | Epoxy |
| Temp. Range | Up to 194 Degrees F |
| Includes | Electrical Insulating Resin, Instruction Sheet, Plastic Mold, Sealing Compound and Pressure-Sensitive Adhesive-Film-Sealing Strip |
| Color | Black |
| Max. Voltage | 1,000 V |
| Overall Length | 8 in |
| Max. Temp. | 194 deg F |
| Voltage Rating | 1000V |
| Standards | RoHS 2011/65/EU Compliant |
| Number of Splices | 1 |
| RoHS Compliant | Yes |
| Resin Material | Resin 4N |
| Minimum Wire Size | 4/0 AWG |
| Maximum Voltage | 1,000 V |
| Maximum Operating Temperature | 194 deg F |
| Barrel Length | Not Applicable |
| Number of Pieces | 3 |
| Resistance Properties | Moisture-Resistant |
| For Maximum Cable OD | 1-1/2 in |
| Tensile Strength | 444 psi |
| For Wire Type | Power Cables |
| Termination Style | Splice |
| Special Features | Pressure-Sensitive Adhesive Film Sealing Strip |
| Maximum Wire Size | 250 kcmil |
| Body Material | Epoxy |
| Compatible with Product Type | Underground Cables |
| Package Quantity | 1 |
