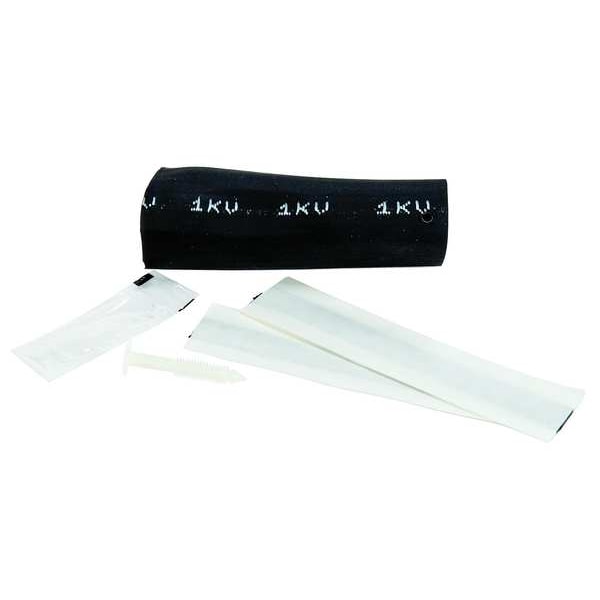

Kit de empalme de compuesto de resina, de 4 a 1/0 AWG, 194F.
| Item | Resin Compound Splice Kit |
|---|---|
| Wire Range | 4 to 1/0 AWG |
| Material | EPDM Rubber |
| Connection Type | Pigtail |
| Temp. Range | Up to 194 Degrees F |
| Includes | (1) Instruction Sheet, (12) Mastic Sealing Strips, (3) Cable Ties, (3) Cleaning Kits, (3) Cold Shrink Jacket Tubes, (3) Cold Shrink Terminations, (3) Constant Force Springs, (3) Copper Tape Strips, (3) Ground Straps, (3) Lug Covers, (6) Tubes of Silicone Grease |
| Color | Black |
| Max. Voltage | 8,000 V |
| Overall Length | 12 in |
| Max. Temp. | 194 deg F |
| Voltage Rating | 5000V to 8000V |
| Standards | RoHS 2011/65/EU Compliant |
| Maximum Wire Size | 1/0 AWG |
| Compatible with Product Type | Pigtail or V-Stub, Shielded and Non-Shielded Cable Connections |
| Contact Material | Copper |
| Body Material | EPDM Rubber |
| Number of Pieces | 42 |
| Tensile Strength | 1,400 psi |
| Resistance Properties | Abrasion-Resistant, Puncture-Resistant |
| Termination Style | Splice |
| Compatible with Series | 30000 |
| Insulation Coverage | Full Coverage |
| Heat Shrink Material | EPDM Rubber |
| RoHS Compliant | Yes |
| Maximum Voltage | 8,000 V |
| Minimum Wire Size | 4 AWG |
| Minimum Operating Temperature | 194 deg F |
| Resin Material | Resin |
| Number of Splices | 3 |
| Maximum Operating Temperature | 266 deg F |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Tubing Wall Type | Thick |
| For Wire Type | Motor Lead Cable |
| Insulation Material | EPDM Rubber |
| Cable Type | Concentric Neutral |
| Minimum Conductor Size | 250 kcmil |
| Number of Conductors | 1, 3 |
| Conductor Sizes | 250 kcmil, 350 kcmil, 500 kcmil |
| Voltage | 5 kV - 8 kV |
| Cable Shielding | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN), Non-shielded, Ribbon Shield, UniShield®, Wire Shield |
| Maximum Operating Voltage | 8 kV |
| Insulation Outside Diameter | 0.43 to 0.65 in |
| Inner Diameter of Boot to Size of Cables | 1.16 in |
| Maximum Lug Length | 2-3/4 in |
| Insulation Outside Diameter Range | 0.43 to 0.65 in |
| Application | Cable Connection |
| Range Feeder Cable (AWG & kcmil) | 36557 |
| Typical Splice Length | 33 in |
| Conductor Material | Aluminum, Copper |
| Splice Type | Pigtail Splice |
| Maximum Bolt Length | 3/4 in |
| Voltage Application | Medium Voltage |
| Maximum Conductor Size | 500 kcmil |
| Package Quantity | 1 |
