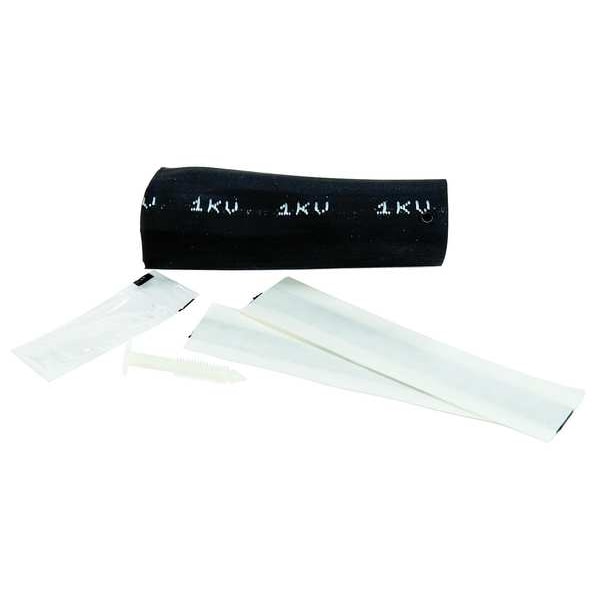

Kit de empalme de resina compuesta, de 4 a 1/0 AWG, 8000V.
| Item | Resin Compound Splice Kit |
|---|---|
| Wire Range | 4 to 1/0 AWG |
| Material | EPDM Rubber |
| Connection Type | Pigtail |
| Temp. Range | Up to 194 Degrees F |
| Includes | (3) Bags of Solvent Cleaning Cloths, (3) Instruction Sheets, (3) Locking Pins, (3) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Scotch(R) Linerless Rubber Splicing Tape 130C Strips, (3) Tubes of Silicone Grease |
| Color | Black |
| Max. Voltage | 8,000 V |
| Overall Length | 9-1/2 in |
| Max. Temp. | 194 deg F |
| Voltage Rating | 5000V to 8000V |
| Standards | CSA Approved |
| RoHS Compliant | Yes |
| Minimum Wire Size | 4 AWG |
| Termination Style | Splice |
| Body Material | EPDM Rubber |
| Tensile Strength | 1,400 psi |
| Maximum Operating Temperature | 194 deg F |
| Resin Material | Resin |
| Number of Pieces | 18 |
| Tubing Wall Type | Thick |
| Number of Splices | 3 |
| Compatible with Product Type | Pigtail, Non-Shielded Cable Connections |
| Maximum Voltage | 8,000 V |
| Contact Material | Copper |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Resistance Properties | Abrasion-Resistant, Puncture-Resistant |
| Insulation Coverage | Full Coverage |
| For Wire Type | Motor Lead Cable |
| Maximum Wire Size | 1/0 AWG |
| Heat Shrink Material | EPDM Rubber |
| Compatible with Series | 30000 |
| Insulation Material | EPDM Rubber |
| Voltage | 5 kV - 8 kV |
| Insulation Outside Diameter Range | 0.43 to 0.65 in |
| Maximum Bolt Length | 3/4 in |
| Range Feeder Cable (AWG & kcmil) | 36557 |
| Maximum Operating Voltage | 8 kV |
| Insulation Outside Diameter | 0.43 to 0.65 in |
| Splice Type | Pigtail Only |
| Package Quantity | 1 |
