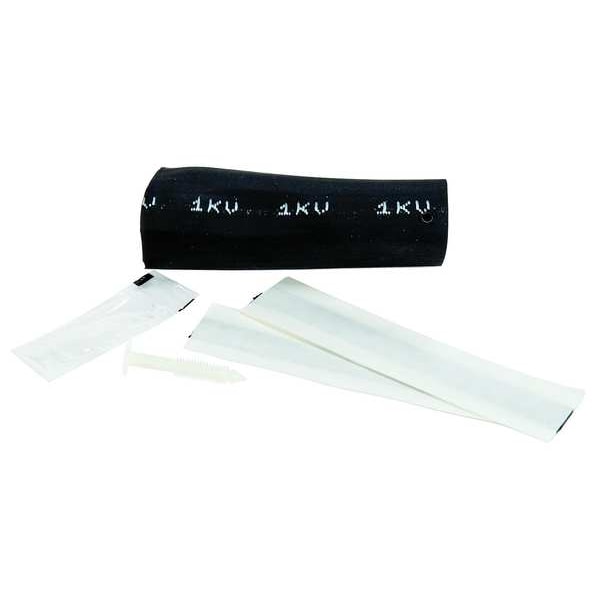

Resin Comp Splice Kit, 4 to 1/0 AWG, Blk
| Item | Resin Compound Splice Kit |
|---|---|
| Wire Range | 4 to 1/0 AWG |
| Material | EPDM Rubber |
| Connection Type | Pigtail |
| Temp. Range | Up to 194 Degrees F |
| Includes | (12) Adapters, (3) Bags of Solvent Cleaning Cloths, (3) Cold Shrink Tubes, (3) Instruction Sheets, (3) Rolls Scotch(R) Linerless Rubber Splicing Tape 130C, (3) Rolls Scotch(R) Stress Control Tape 2220, (6) Tubes of Silicone Grease |
| Color | Black |
| Max. Voltage | 8,000 V |
| Overall Length | 13 in |
| Max. Temp. | 194 deg F |
| Standards | RoHS 2011/65/EU Compliant |
| Voltage Rating | 5000V to 8000V |
| Tubing Wall Type | Thick |
| Compatible with Series | 30000 |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Number of Pieces | 30 |
| Heat Shrink Material | EPDM Rubber |
| Contact Material | Copper |
| For Wire Type | Motor Lead Cable |
| Resin Material | Resin |
| Minimum Wire Size | 4 AWG |
| Maximum Voltage | 8,000 V |
| Insulation Material | EPDM Rubber |
| Body Material | EPDM Rubber |
| Maximum Operating Temperature | 194 deg F |
| Number of Splices | 3 |
| RoHS Compliant | Yes |
| Maximum Wire Size | 1/0 AWG |
| Insulation Coverage | Full Coverage |
| Tensile Strength | 1,400 psi |
| Compatible with Product Type | Inline, Shielded and Non-Shielded Cable Connections |
| Termination Style | Splice |
| Resistance Properties | Abrasion-Resistant, Puncture-Resistant |
| Insulation Outside Diameter by Conductor Size | 4-2 AWG (0.43-0.57 Inch), 2-1/0 AWG (0.52-0.65 Inch) |
| Maximum Operating Voltage | 8 kV |
| Voltage | 5 kV - 8 kV |
| Insulation Outside Diameter Range | 4-2 AWG 0.43-0.57 in / 2-1/0 AWG 0.52-0.65 in |
| Splice Cover Length | 12 to 13 in |
| Splice Cover Inner Diameter | 4-2 AWG 0.30 in / 2- 1/0 AWG 0.42 in |
| Maximum Bolt Length | 1-1/4 in |
| Splice Type | Inline |
| Range Feeder Cable (AWG & kcmil) | 36557 |
| Package Quantity | 1 |
