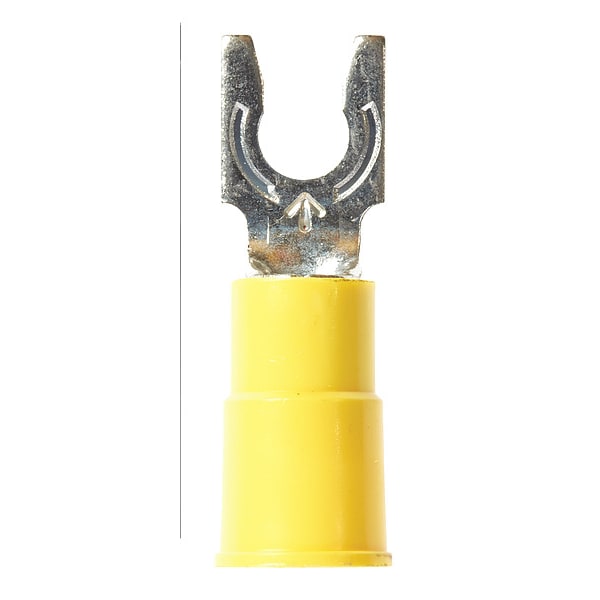

Terminal de horquilla con seguro de vinilo Scotchlok 12-10 AWG para tornillo #10, paquete de 50.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Self-Insulated |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Tongue Width - Wire Connector | 0.32 in |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Overall Length | 1.03 in |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Terminal Type | Locking |
| Seam | Brazed |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Standards | CSA, UL |
| Maximum Voltage | 1,000 V |
| Tongue Width | 0.32 in |
| Minimum Wire Size | 12 AWG |
| Seam Style | Brazed |
| Maximum Wire Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Maximum Insulation Outer Diameter | 1/4 in |
| Barrel Inside Diameter | 0.135 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Clearance (C) | 0.28 in |
| Maximum Conductor Size | 10 AWG |
| Dimension E | 0.83 in |
| Maximum Lock Width | 0.36 in |
| RoHS Compliant | Yes |
| Insulation Coverage | Partial Coverage |
| Terminal Shape | Fork |
| Contact Material | Copper |
| Tongue Length | 0.48 in |
| Barrel Style | Funnel Entry |
| Special Features | Spring-Like Tongue Firmly Fits Around the Stud |
| Minimum Operating Temperature | -40 deg F |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Insulation Material | Vinyl |
| UL 94 Flammability Rating | Not Applicable |
| Package Quantity | 50 |
