Terminal de horquilla de bloqueo de vinilo de calibre 12-10 AWG para perno de 1/4", paquete de 50.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |

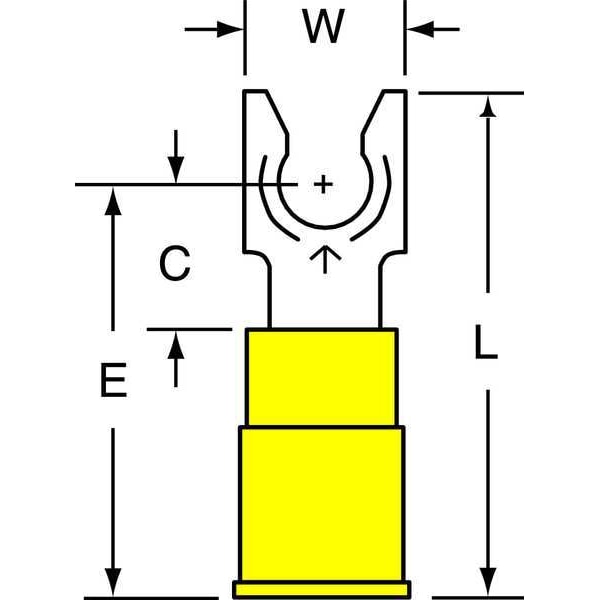

| Tongue Width - Wire Connector | 0.43 in |
| Terminal Type | Locking |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed |
| Seam | Brazed |
| Overall Length | 1.24 in |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Item | Fork Terminal |
| Shop By | Closeouts |
| Maximum Voltage | 600 V |
| Tongue Width | 0.43 in |
| Minimum Conductor Size | 12 AWG |
| Barrel Inside Diameter | 0.135 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Dimension E | 0.99 in |
| Maximum Conductor Size | 10 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Maximum Insulation Outer Diameter | 1/4 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Clearance (C) | 0.44 in |
| Material | Plastic |
| Maximum Lock Width | 0.48 in |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Seam Style | Brazed |
| Package Quantity | 50 |
