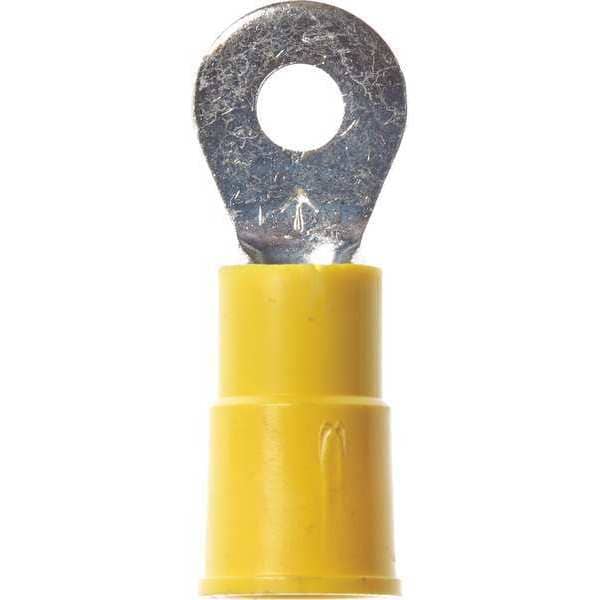

Terminal de anillo de vinilo Scotchlok 12-10 AWG para tornillo #10, paquete de 50 piezas.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Self-Insulated |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Max. Voltage | 600 V |
| Standards | CSA, UL |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Seam | Butted |
| Overall Length | 1.03 in |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.38 in |
| Connection Material | Copper |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Maximum Voltage | 1,000 V |
| Termination Style | Crimp |
| Contact Material | Copper |
| Maximum Wire Size | 10 AWG |
| Seam Style | Butted |
| Tongue Width | 0.38 in |
| Minimum Wire Size | 12 AWG |
| Terminal Shape | Standard Ring Tongue |
| RoHS Compliant | Yes |
| Special Features | Corrosion Resistant |
| Contact Finish | Tin |
| Barrel Style | Funnel Entry |
| Insulation Material | Vinyl |
| Insulation Coverage | Partial Coverage |
| Minimum Operating Temperature | -40 deg F |
| UL 94 Flammability Rating | V-2 |
| Package Quantity | 50 |
