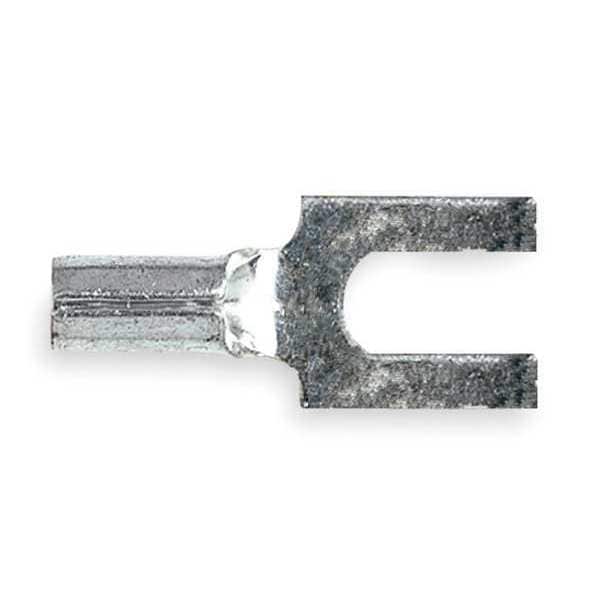

Terminal de horquilla sin aislar de calibre 16-14 AWG para tornillo #10, paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Blue |
| Overall Length | 0.7 in |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.34 in |
| Terminal Type | Standard |
| Max. Temp. | 347 deg F |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Connection Material | Copper |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Insulation Coverage | None |
| Maximum Wire Size | 14 AWG |
| Tongue Thickness | 0.03 in |
| Seam Style | Brazed |
| Termination Style | Crimp |
| Contact Material | Copper |
| Maximum Operating Temperature | 347 deg F |
| Tongue Width | 0.34 in |
| Barrel Length | 1/4 in |
| RoHS Compliant | Yes |
| Insulation Material | None |
| Minimum Wire Size | 16 AWG |
| Maximum Voltage | 600 V |
| Terminal Shape | Fork |
| Special Features | Beveled Mouth Offers Easy Insertion of Wires |
| Contact Finish | Tin |
| Package Quantity | 100 |
