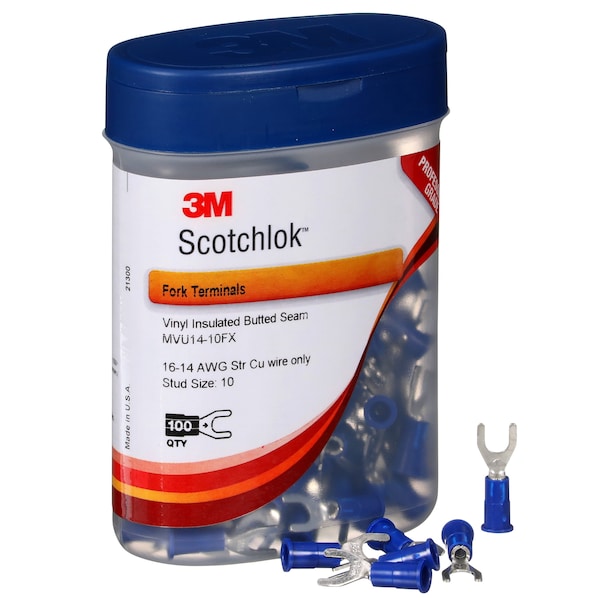

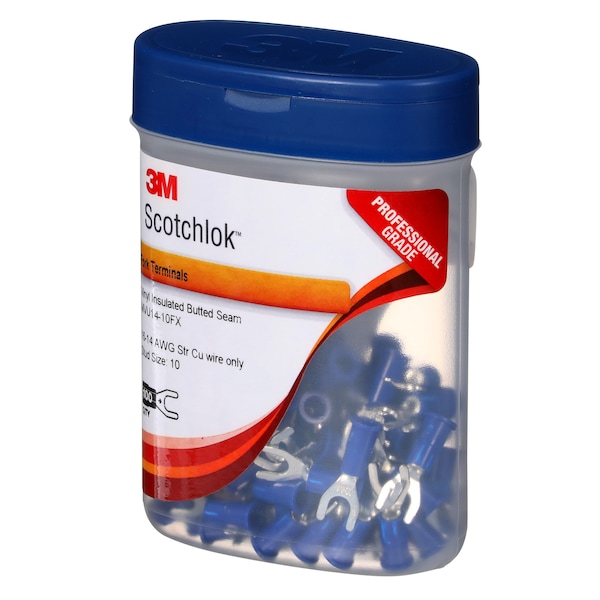

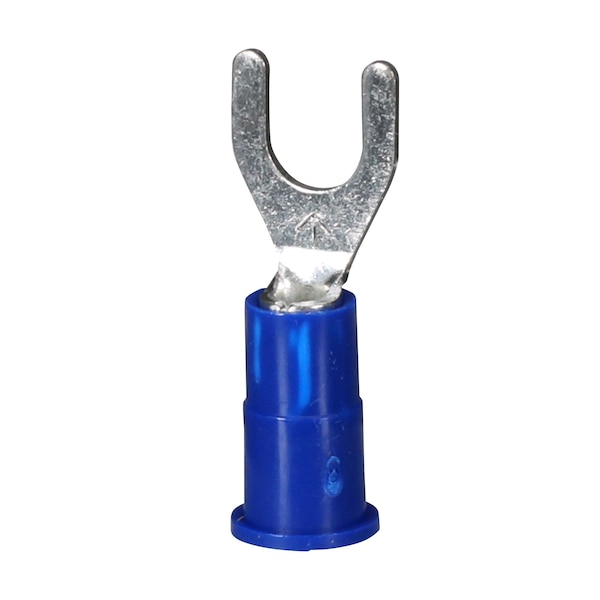

Terminal tipo horquilla de vinil Scotchlok para cable calibre 16-14 AWG, con perno de tamaño #10. Paquete con 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Self-Insulated |
| Stud Size | #10 |
| Insulation Color | Blue |

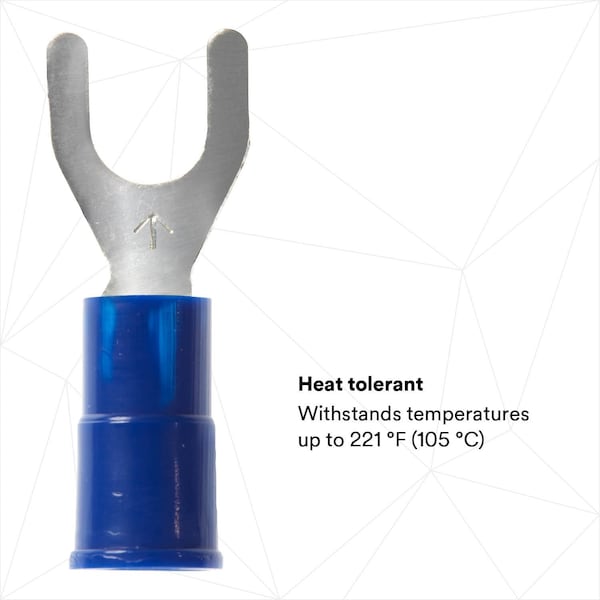

| Max. Temp. | 221 deg F |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |

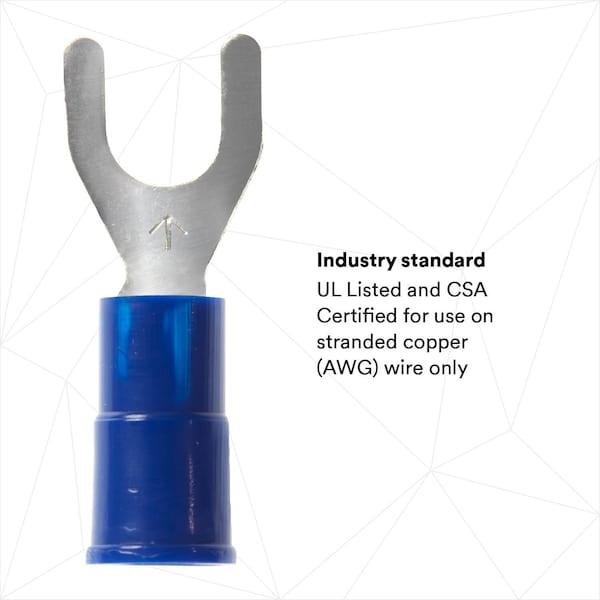

| Standards | CSA, UL |

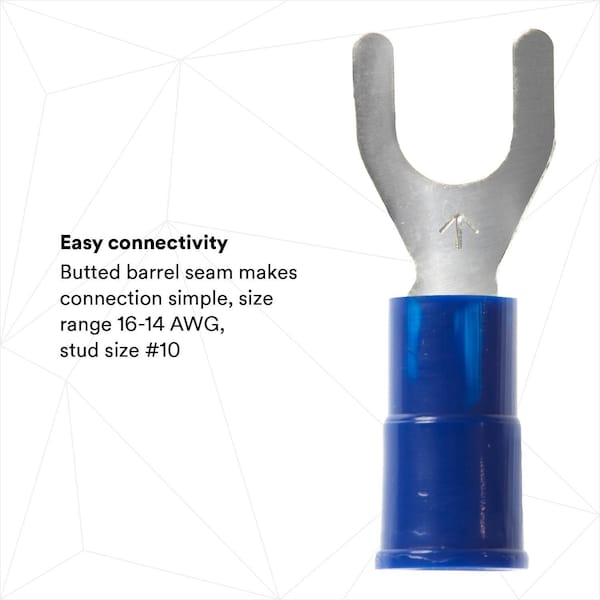

| Seam | Butted |
| Overall Length | 0.88 in |
| Tongue Width - Wire Connector | 0.34 in |
| Connection Material | Copper |
| Maximum Voltage | 1,000 V |
| Tongue Width | 0.34 in |
| Maximum Wire Size | 14 AWG |
| Seam Style | Butted |
| Minimum Wire Size | 16 AWG |
| Barrel Inside Diameter | 0.09 in |
| Dimension E | 0.74 in |
| Maximum Conductor Size | 14 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Stud Diameter | 0.19 in |
| Minimum Conductor Size | 16 AWG |
| Maximum Insulation Outer Diameter | 0.17 in |
| Clearance (C) | 0.29 in |
| Minimum Operating Temperature | -40 deg F |
| Contact Finish | Tin |
| Special Features | Wider-Tongue Design for Use on Free-Standing Studs |
| Termination Style | Crimp |
| Barrel Style | Funnel Entry |

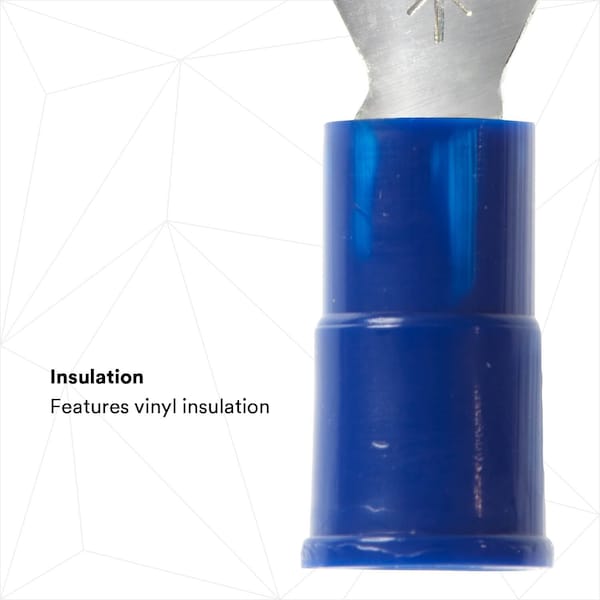

| Insulation Material | Vinyl |
| UL 94 Flammability Rating | Not Applicable |
| Insulation Coverage | Partial Coverage |
| Terminal Shape | Fork |
| Tongue Length | 0.45 in |
| RoHS Compliant | Yes |
| Contact Material | Copper |
| Package Quantity | 100 |
