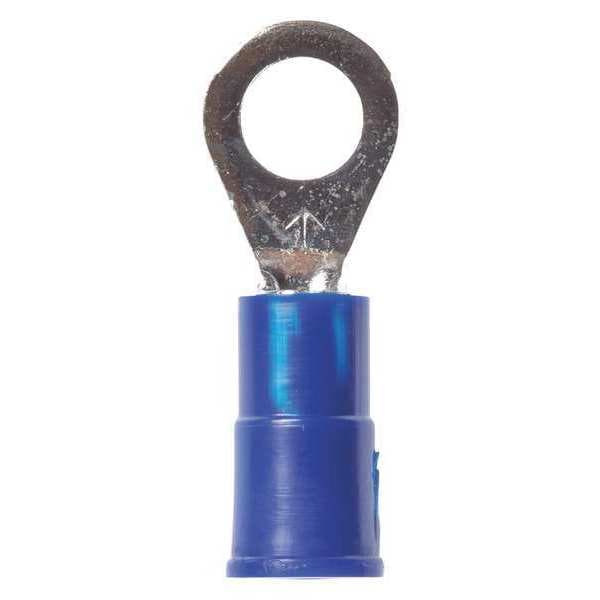

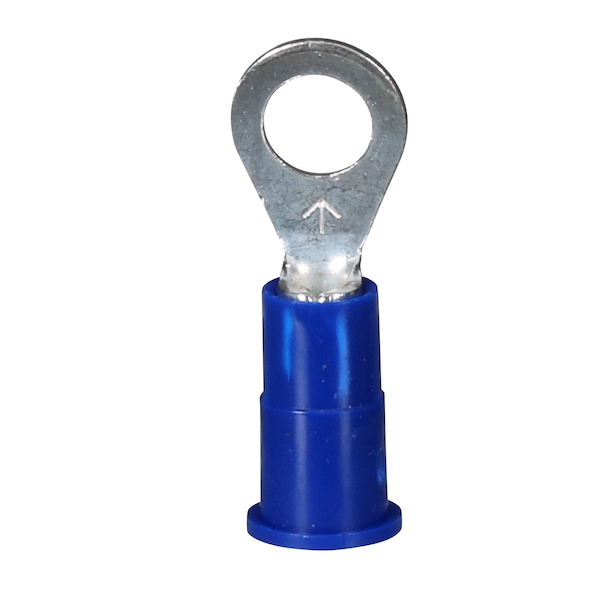

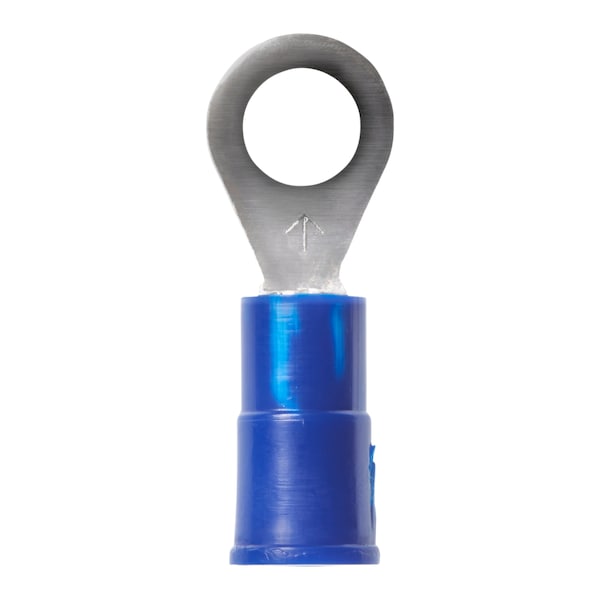

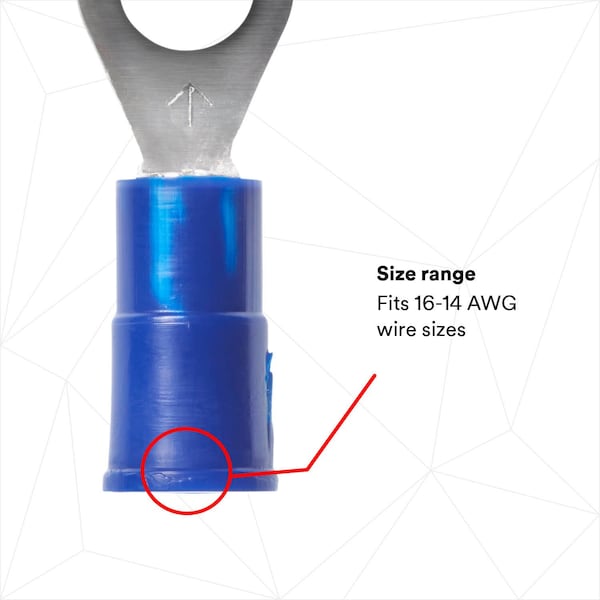

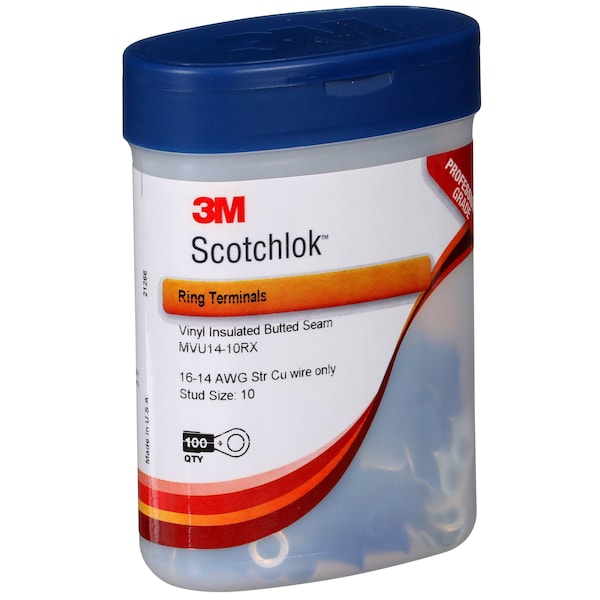

Paquete de 100 terminales de anillo de vinilo Scotchlok 16-14 AWG para perno #10. Ideal para conexiones eléctricas seguras y duraderas.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Self-Insulated |
| Stud Size | #10 |
| Insulation Color | Blue |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Standards | CSA, UL |
| Connection Type | Crimp |
| Item | Ring Terminal |
| Max. Voltage | 600 V |

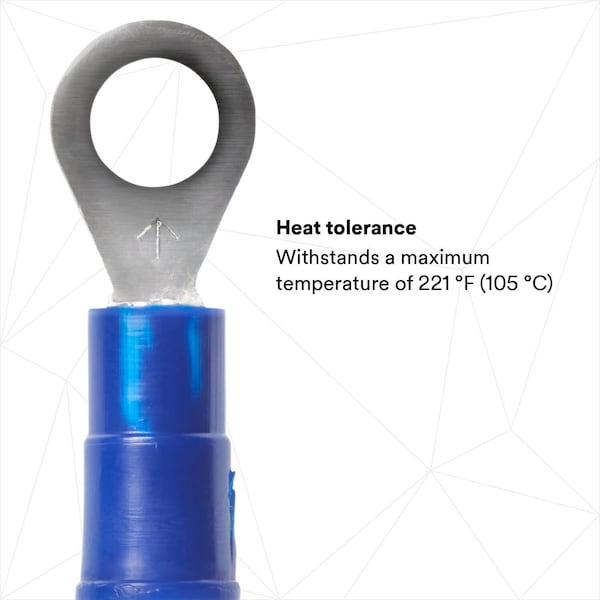

| Max. Temp. | 221 deg F |
| Seam | Butted |
| Overall Length | 0.9 in |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.33 in |
| Maximum Voltage | 1,000 V |
| Termination Style | Crimp |
| Minimum Wire Size | 16 AWG |
| Tongue Width | 0.33 in |
| Seam Style | Butted |
| Contact Material | Copper |
| Maximum Wire Size | 14 AWG |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 16 AWG |
| Connection Width | 0.19 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| RoHS Compliant | Yes |
| UL 94 Flammability Rating | V-2 |
| Special Features | Corrosion Resistant |
| Insulation Coverage | Partial Coverage |
| Terminal Shape | Standard Ring Tongue |
| Minimum Operating Temperature | -40 deg F |
| Barrel Style | Funnel Entry |

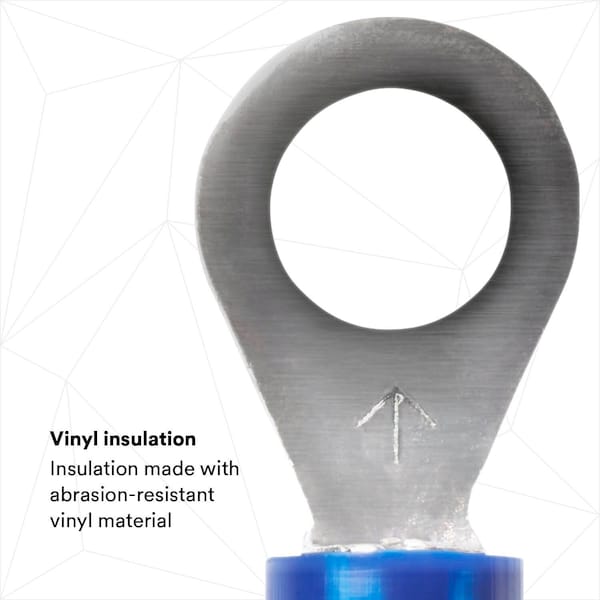

| Insulation Material | Vinyl |
| Contact Finish | Tin |

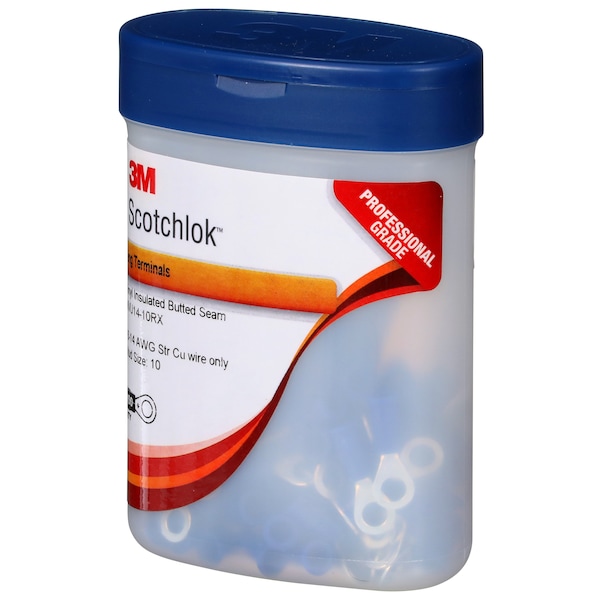

| Package Quantity | 100 |
