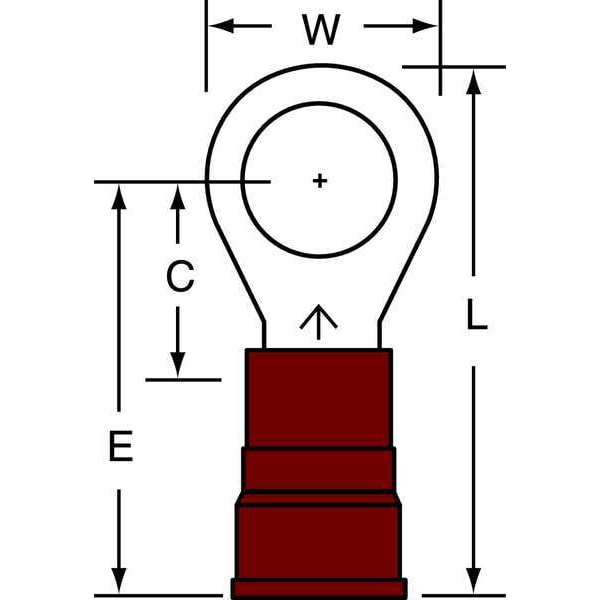

Terminal de anillo de vinilo para cable #6 de calibre 22-18 AWG, paquete de 100 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Red |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 1/4 in |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Overall Length | 0.8 in |
| Standards | CSA Certified, UL Listed |
| Maximum Voltage | 600 V |
| Connection Width | 0.138 in |
| Minimum Conductor Size | 22 AWG |
| Maximum Conductor Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Tongue Width | 1/4 in |
| Termination Style | Crimp |
| Seam Style | Butted |
| Contact Material | Copper |
| Maximum Wire Size | 18 AWG |
| Package Quantity | 100 |
