Scotchlok Butt Splice Connector, 12-10 AWG, PK50
| Item | Splice Connector |
|---|---|
| Wire Range | 12 to 10 AWG |
| Insulation Type | Bare |
| Seam | Butted |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Color | Bare |
| Max. Voltage | 600 V |

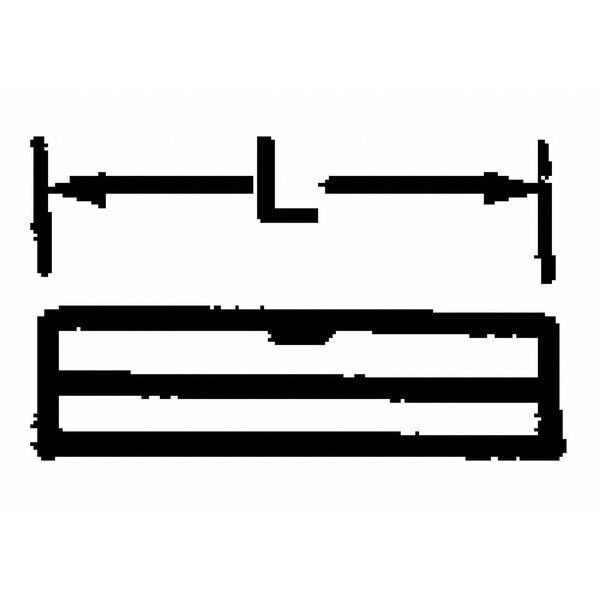

| Overall Length | 0.56 in |
| Max. Temp. | 347 deg F |
| Standards | CSA Certified, RoHS 2011/65/EU, UL Listed |
| Connector Type | Butt Splice |
| Barrel Inside Dia. | 0.135 in |
| Connection Material | Copper |
| Minimum Conductor Size | 12 AWG |
| Body Material | Copper Alloy |
| Insulation Material | Non-insulated |
| Maximum Conductor Size | 10 AWG |
| Package Quantity | 50 |
