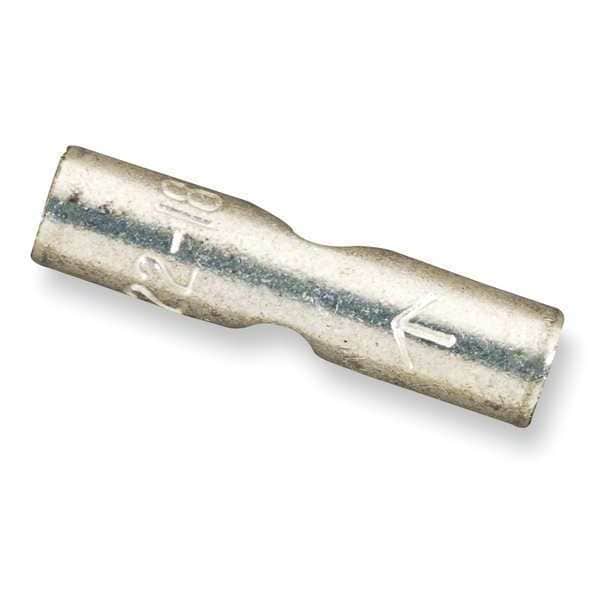

Conector de empalme de tope Scotchlok, calibre 16-14 AWG, paquete de 100
| Item | Splice Connector |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Bare |
| Seam | Butted |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Color | Bare |
| Max. Voltage | 600 V |

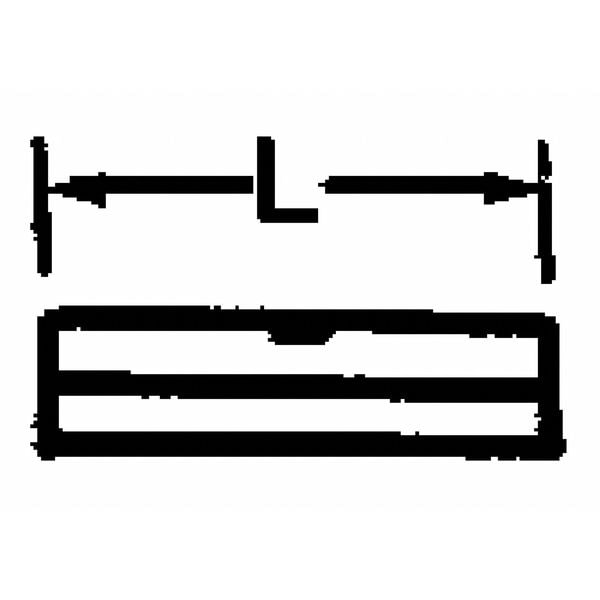

| Overall Length | 0.66 in |
| Max. Temp. | 347 deg F |
| Connection Material | Copper |
| Barrel Inside Dia. | 0.09 in |
| Standards | CSA Certified, RoHS 2011/65/EU, UL Listed |
| Connector Type | Butt Splice |
| Terminal Type | Butt Connectors |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 16 AWG |
| Terminal Style | Standard |
| Body Material | Copper Alloy |
| Barrel Inside Diameter | 0.09 in |
| Insulation Material | Non-insulated |
| Minimum Conductor Size | 14 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Package Quantity | 100 |
