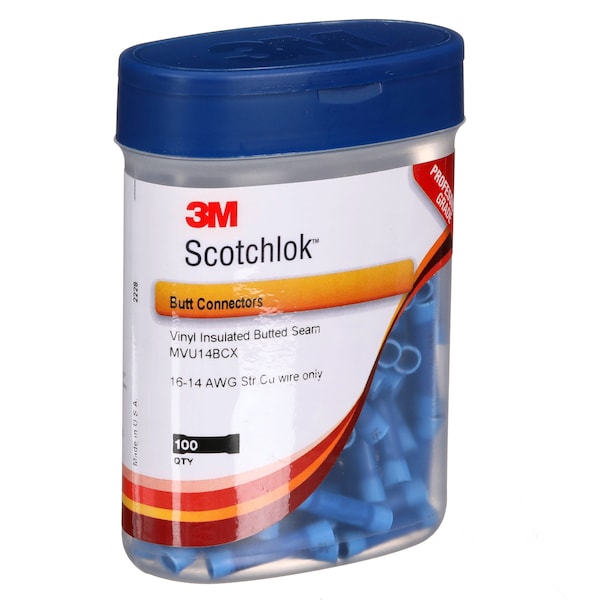

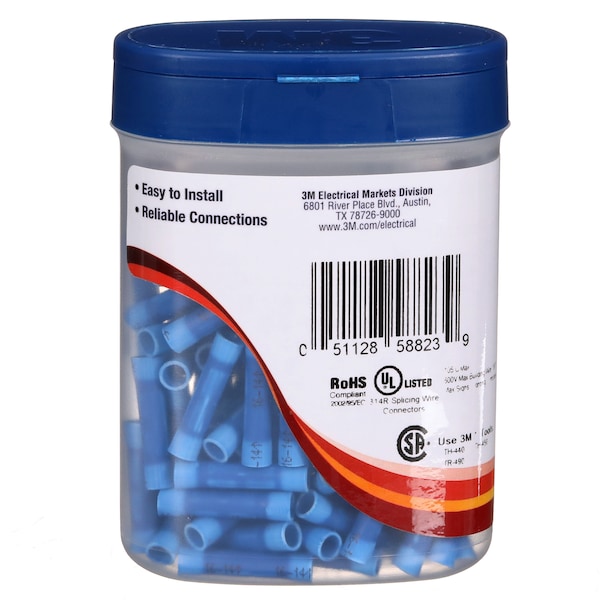

Scotchlok Butt Splice Connector, 16-14 AWG, PK100
| Item | Splice Connector |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Vinyl |

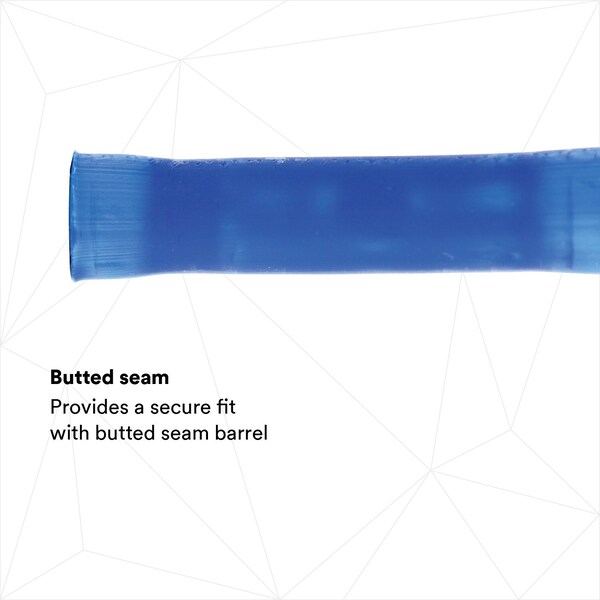

| Seam | Butted |

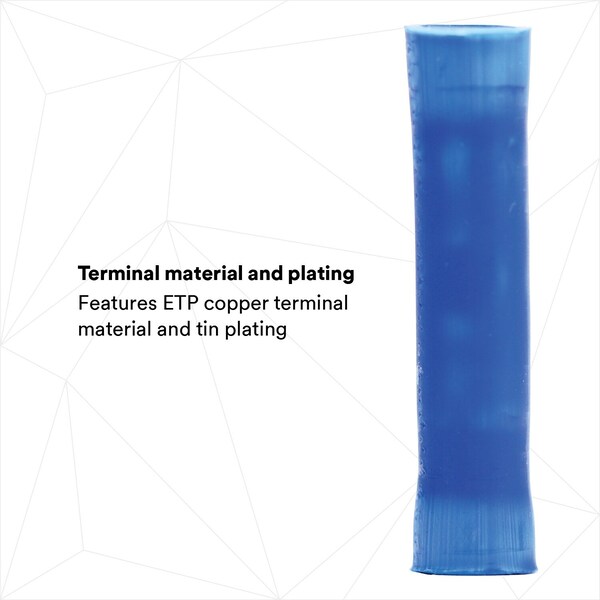

| Material | ETP Copper |
| Connection Type | Crimp |
| Insulation Color | Blue |
| Color | Blue |
| Max. Voltage | 600 V |
| Overall Length | 1 in |

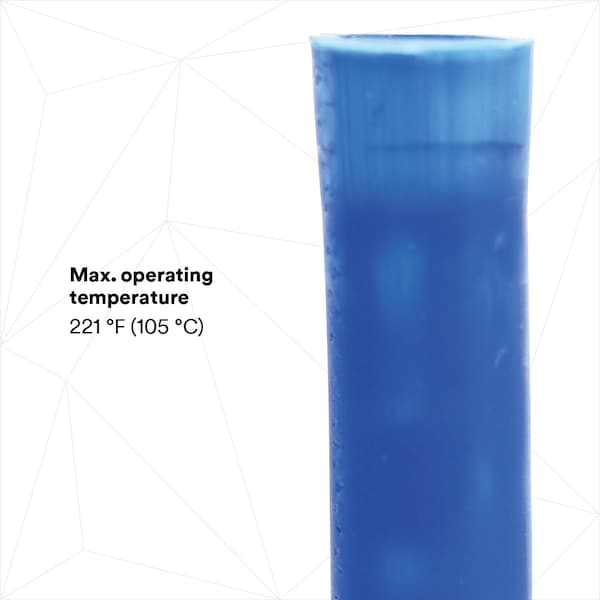

| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 0.09 in |
| Connection Material | Copper |
| Standards | CSA, UL |
| Connector Type | Butt Splice |
| Terminal Type | Butt Connectors |
| Minimum Wire Size | 16 AWG |
| Barrel Inside Diameter | 0.09 in |
| Maximum Wire Size | 14 AWG |
| Contact Material | Copper |
| Seam Style | Butted |
| Disconnect Type | Female |
| Conductor Sizes | 16 - 14 AWG |
| Maximum Insulation Outside Diameter | 0.145 in |
| Barrel Length | 1/4 in |
| Minimum Conductor Size | 16 AWG |
| Maximum Operating Temperature (Celsius) | 105°C |
| Product Type | Connectors |
| Operating Temperature Range (Celsius) | -40 to 105°C |
| Solution for | Wireless Network Infrastructure Accessories |
| Minimum Conductor Diameter | 1.209 mm |
| Body Material | Copper Alloy |
| Maximum Insulation Outer Diameter | 0.17 in |
| Maximum Conductor Size | 14 AWG |
| Terminal Style | Standard |
| Termination Style | Crimp |
| UL 94 Flammability Rating | Not Applicable |
| RoHS Compliant | Yes |
| Special Features | Built-In Wire Stop for Correct Positioning, Funnel-Designed, Polyvinyl Chloride Sleeve Offers Easy Insertion of Wires |

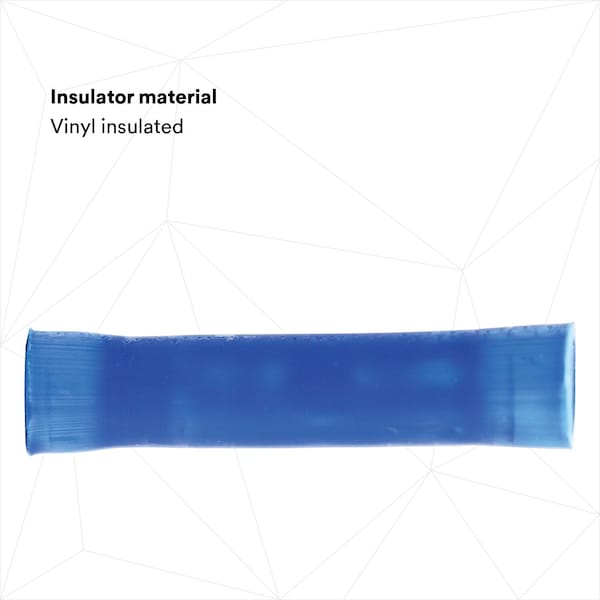

| Insulation Material | Vinyl |
| For Maximum Wire Insulation Diameter | 0.145 in |
| Contact Finish | Tin |
| Package Quantity | 100 |
