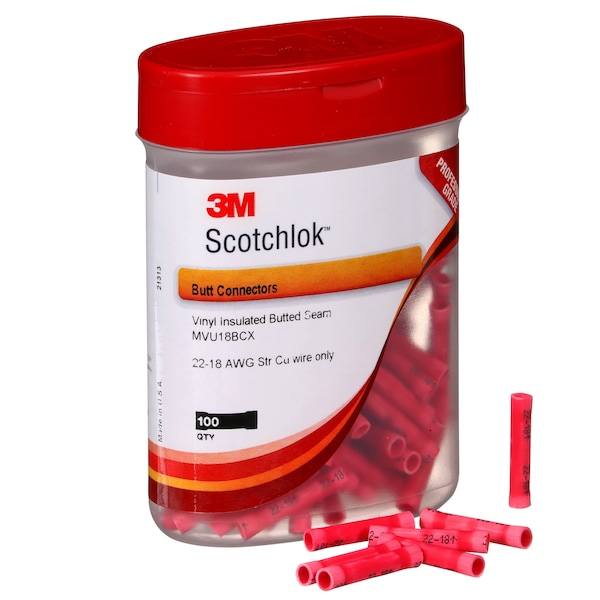

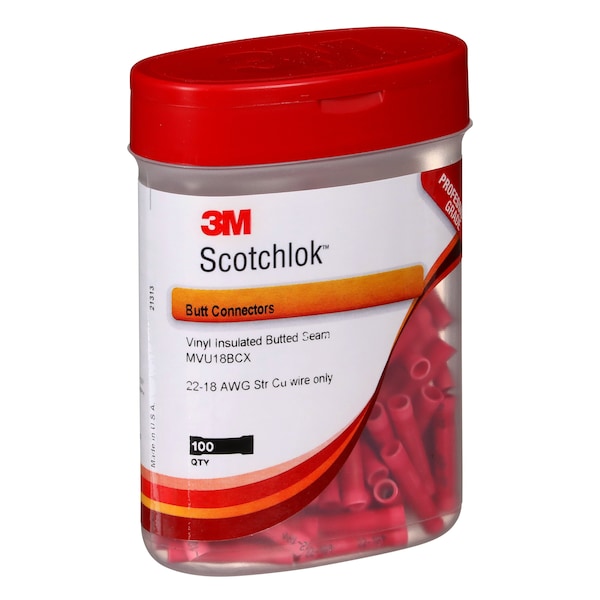

Scotchlok Butt Splice Connector, 22-18AWG, Red, PK100
| Item | Splice Connector |
|---|---|
| Wire Range | 22 to 18 AWG |
| Insulation Type | Vinyl |
| Seam | Butted |
| Connection Type | Crimp |
| Insulation Color | Red |
| Color | Red |
| Max. Voltage | 600 V |
| Overall Length | 1 in |

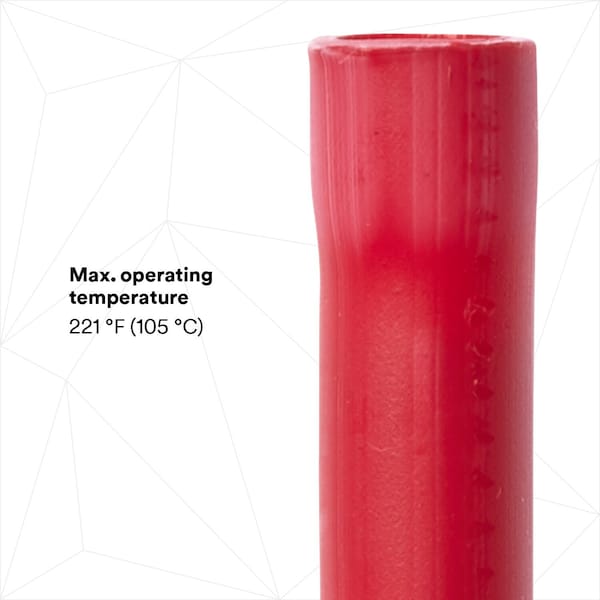

| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Standards | CSA, UL |
| Connector Type | Butt Splice |
| Barrel Inside Dia. | 0.07 in |
| Terminal Type | Butt Connectors |
| Seam Style | Butted |
| Contact Material | Copper |
| Maximum Wire Size | 18 AWG |
| Barrel Inside Diameter | 0.07 in |
| Minimum Wire Size | 22 AWG |
| Maximum Conductor Size | 18 AWG |
| Disconnect Type | Female |
| Minimum Conductor Size | 22 AWG |
| Body Material | Copper Alloy |
| Insulation Material | Vinyl |
| UL 94 Flammability Rating | Not Applicable |
| Termination Style | Crimp |
| Special Features | Built-In Wire Stop for Correct Positioning, Funnel-Designed, Polyvinyl Chloride Sleeve Offers Easy Insertion of Wires |
| RoHS Compliant | Yes |
| Contact Finish | Tin |
| Package Quantity | 100 |
