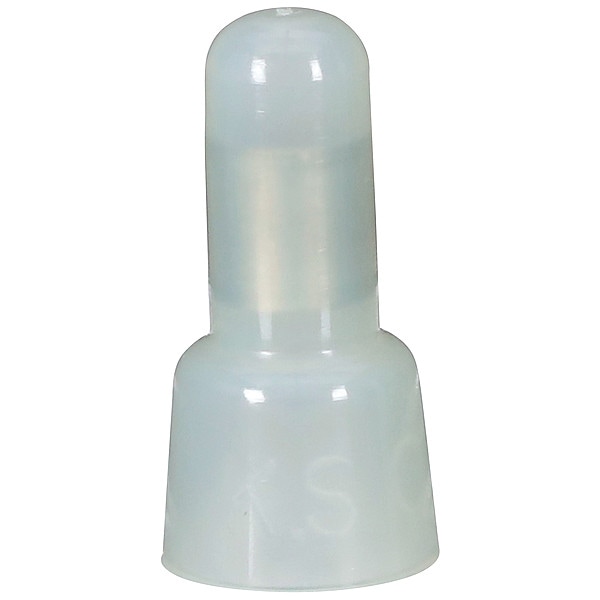

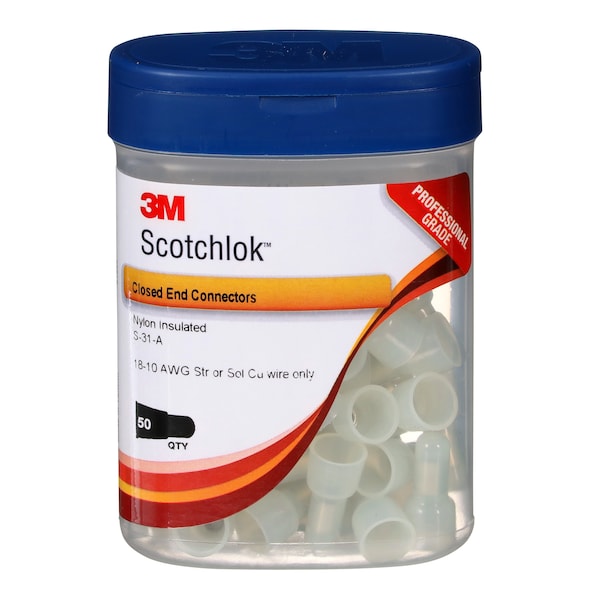

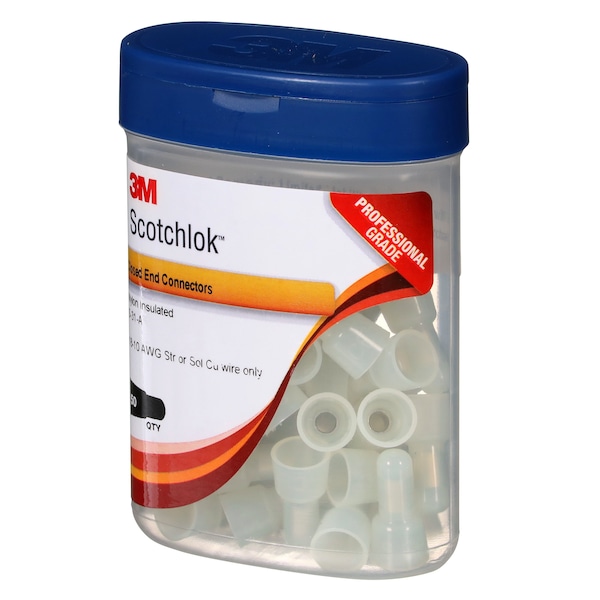

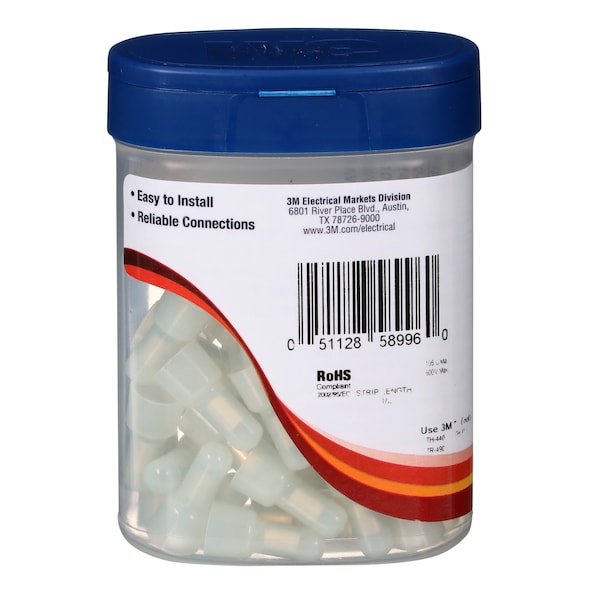

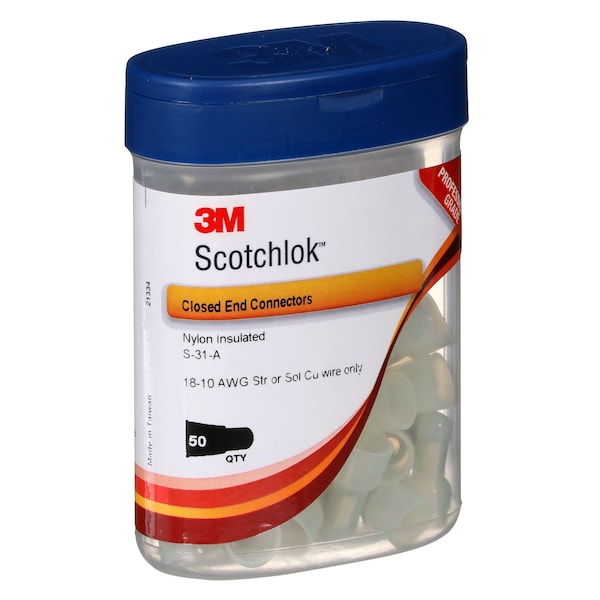

Scotchlok Closed-End Crimp Conn, Clear, 0.850", PK50
| Color | Clear |
|---|---|
| Max. Voltage | 600 V |
| Min. Wire Combination | (1) 22 AWG with (1) 12 AWG |
| Max. Wire Combination | (3) 16 AWG |
| Height | 1 in |
| Length | 0.85 in |

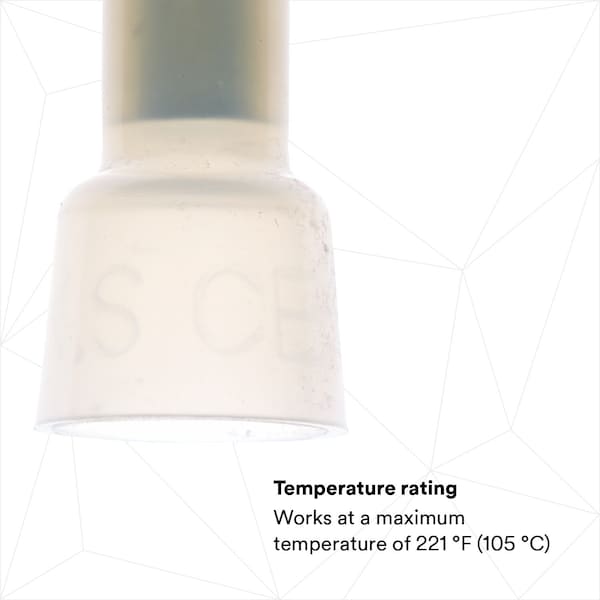

| Max. Temp. | 221 deg F |
| Insulation Type | Nylon |
| Item | Closed-End Crimp Connector |
| Standards | CSA Certified, UL Listed |
| Length (Straight Wireway) | 0.85 in |
| Seam Style | Brazed |
| For Wire Type | Copper |
| Termination Style | Crimp |
| Maximum Voltage | 600 V |
| Minimum Wire Combination | (1) 22 AWG with (1) 12 AWG |
| Overall Length | 1 in |
| Contact Material | Copper |
| Special Features | Built-in Wire Stop for Correct Positioning, Smooth, Flared End Provides Quick Wire Insertion |
| RoHS Compliant | Yes |
| Minimum Operating Temperature | -40 deg F |
| Maximum Operating Temperature | 221 deg F |
| Strip Length | 1/2 in |
| Maximum Wire Size | 10 AWG |
| Insulation Material | Nylon |
| Minimum Wire Size | 18 AWG |
| Maximum Wire Combination | (2) 14 AWG |
| Compatible Installation Tool Model Number | TH-440, TH-450 |
| Product Color | Clear |
| Product Type | Connector Insert |
| Product Name | Closed End Connector, Copper Insert, Nylon Insulated, S31-A |
| Product Material | Nylon, Copper |

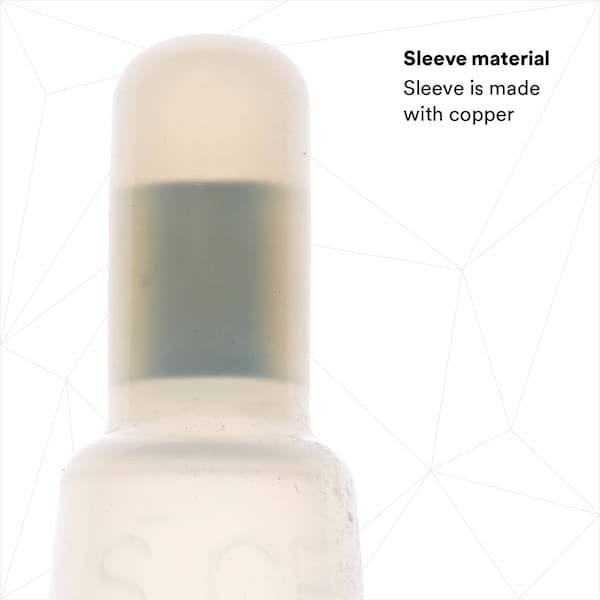

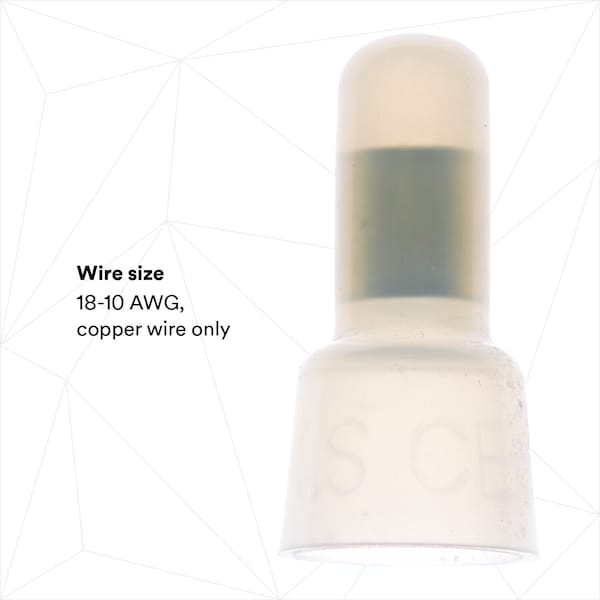

| Additional Information | Wire Size: 18-10 AWG Copper wire only, Maximum Voltage Rating: 600V Building Wire, 1000V Signs, Fixtures (Luminaires), Maximum Operating Temp: 221°F (105°C), Maximum Current: Same as Wire, Insulator Material Nylon, Sleeve Material: Copper |
| Package Quantity | 50 |
