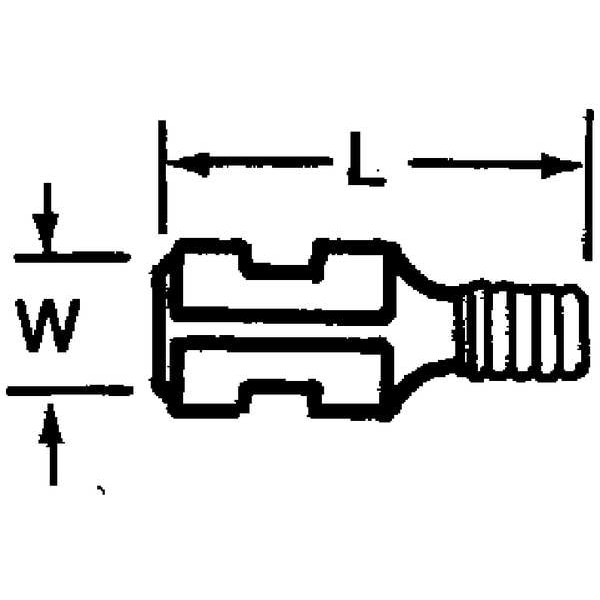

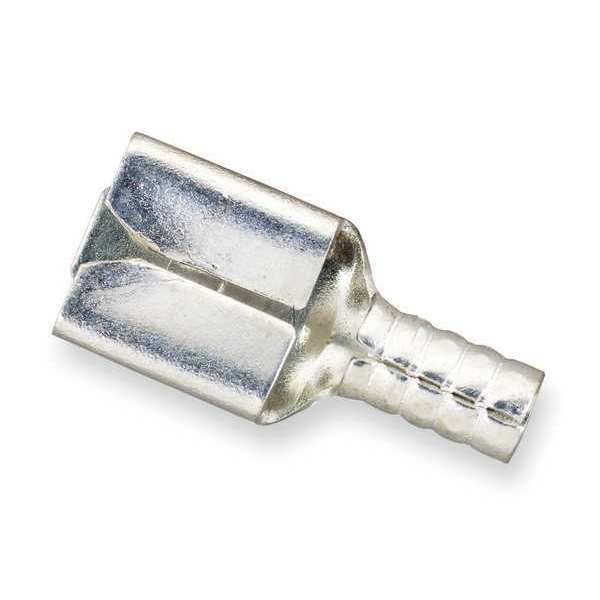

Desconexión hembra Scotchlok, sin recubrimiento, calibre 16-14 AWG, paquete de 100.
| Item | Female Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Connection Type | Crimp |
| Insulation Type | Bare |
| Wire Range | 16 to 14 AWG |
| Overall Length | 0.66 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Temp. | 347 deg F |
| Max. Voltage | 600 V |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Barrel Inside Dia. | 0.08 in |
| Connection Material | Brass |
| Terminal Type | Female Disconnect |
| Barrel Inside Diameter | 0.08 in |
| Minimum Conductor Size | 16 AWG |
| Pad Width | 1/4 in |
| Disconnect Type | Female Disconnect |
| Mates with Female Width | 1/4 in |
| Tab Width | 1/4 in |
| Fastener Orientation | Female |
| Solution for | Wireless Network Infrastructure Accessories |
| Insulation Material | Non-insulated |
| Maximum Conductor Size | 14 AWG |
| Terminal Style | Standard |
| Mates with Male Tab Width (W') | 1/4 in |
| Connection Width | 1/4 in |
| Package Quantity | 100 |
