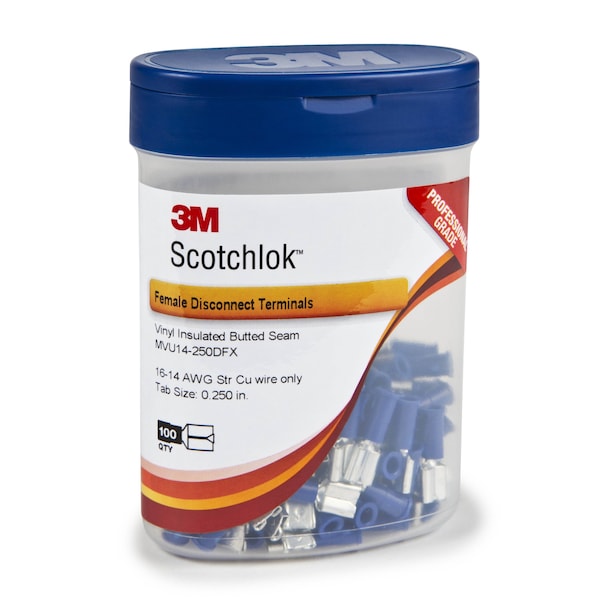

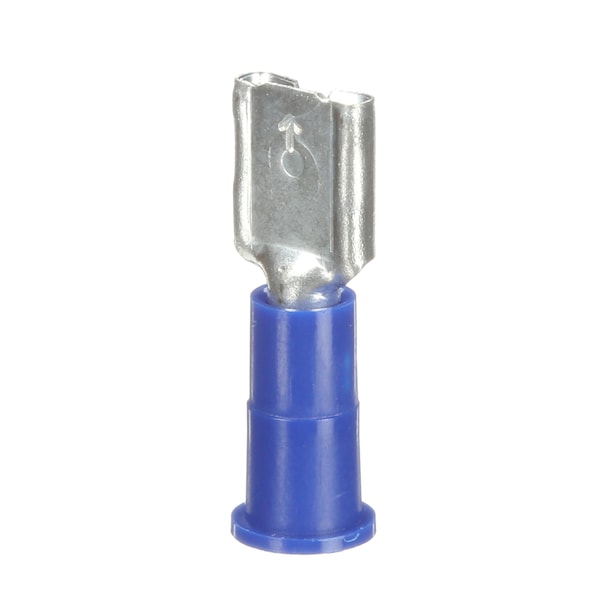

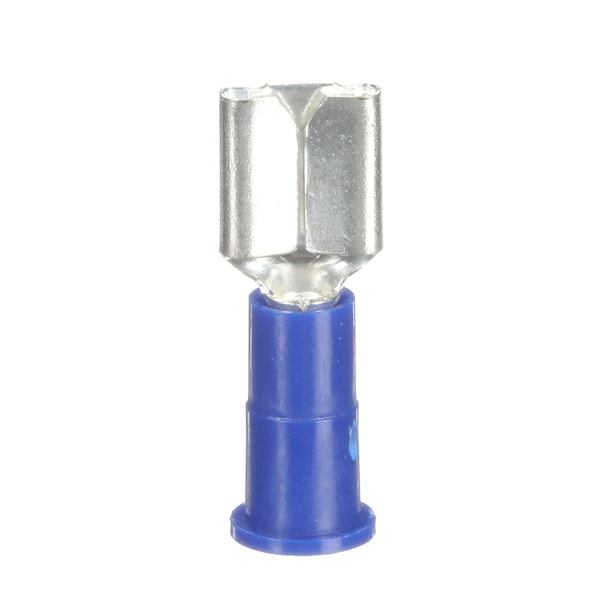

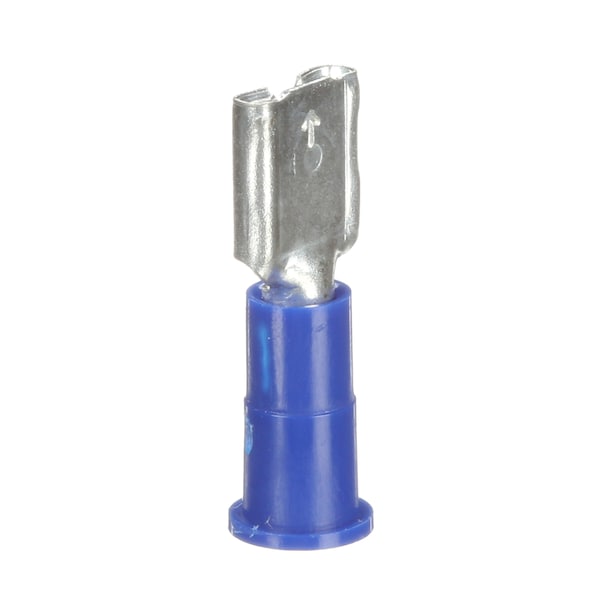

Scotchlok Female Disconnect, Blue, 16-14AWG, PK100
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Material | Copper |
| Insulation Color | Blue |
| Insulation Type | Vinyl |
| Connection Type | Crimp |
| Wire Range | 16 to 14 AWG |

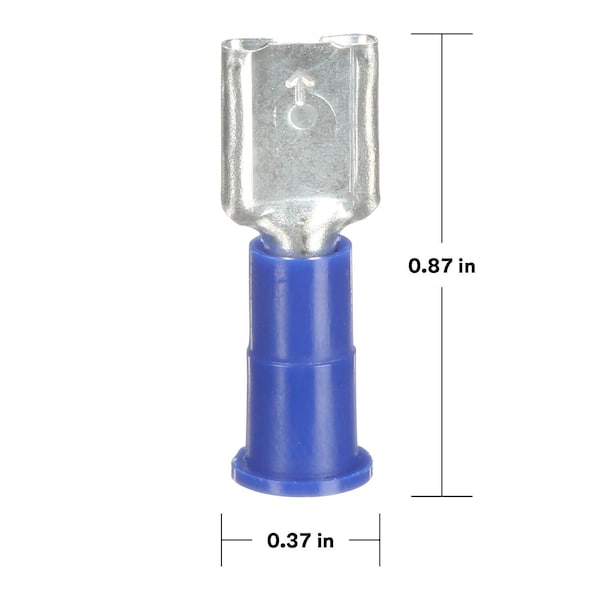

| Overall Length | 0.87 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Copper |
| Barrel Inside Dia. | 0.08 in |

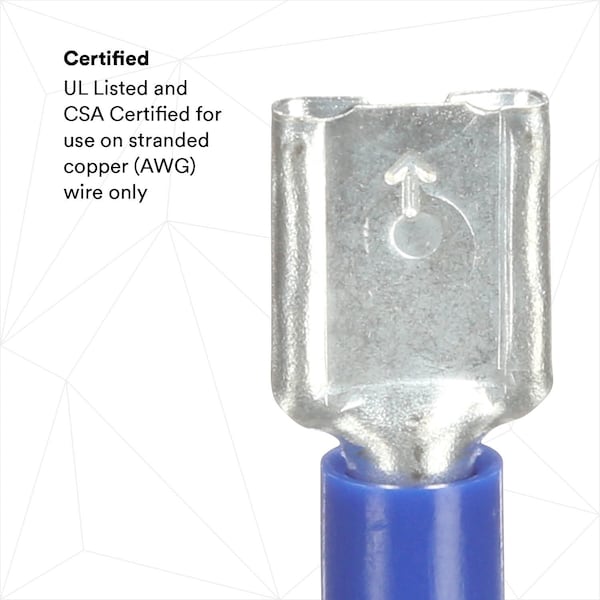

| Standards | CSA Certified, UL Listed |
| Terminal Type | Tab |
| Overall Width | 0.37 in |
| Maximum Voltage | 600 V |
| Tab Width | 1/4 in |
| Maximum Wire Size | 14 AWG |
| Minimum Operating Temperature | 221 deg F |
| Tab Thickness | 0.032 in |
| Termination Style | Crimp |
| Barrel Inside Diameter | 0.08 in |
| Insulation Coverage | Partial Coverage |
| Minimum Wire Size | 16 AWG |
| Seam Style | Butted |
| Contact Material | Brass |
| Connector / Connector Tool | Connector |
| Solution for | Wireless Network Infrastructure Accessories |
| Overall Diameter | 0.23 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Fastener Orientation | Female |
| Maximum Insulation Outer Diameter | 0.145 in |
| Connector Style | Insulation Displacement |
| Barrel Length | 1/4 in |
| Pad Width | 1/4 in |
| Mates with Male Tab Width (W') | 1/4 in |
| Diameter (D) | 0.23 in |
| Terminal Style | Standard |
| Maximum Insulation Outside Diameter | 0.145 in |
| Minimum Conductor Size | 14 AWG |
| Disconnect Type | Female Disconnect |
| Maximum Conductor Size | 16 AWG |
| Connection Width | 1/4 in |
| Mates with Female Width | 1/4 in |
| RoHS Compliant | Yes |
| Insulation Material | Vinyl |
| Barrel Outside Diameter | 0.23 in |
| UL 94 Flammability Rating | Not Applicable |
| Contact Finish | Tin |
| Special Features | Allows for Quick and Easy Disconnect of Wires, Dents and Rolled Edges of this Female Disconnect Terminal Offer Excellent Holding Force |
| Disconnect Style | Tab |
| Package Quantity | 100 |
