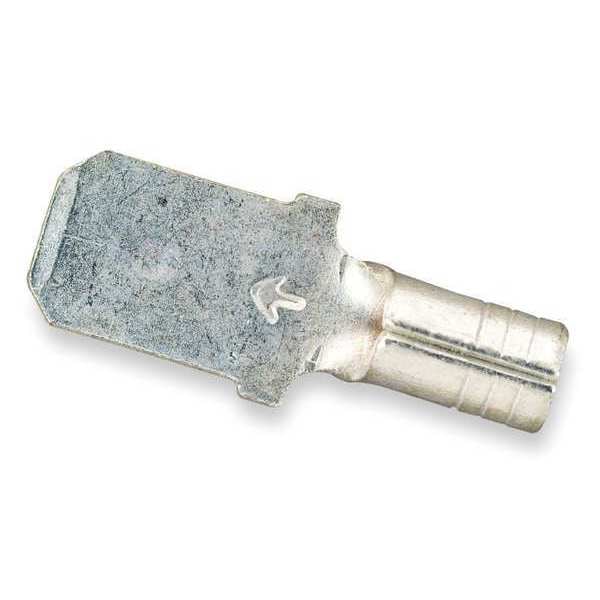

Desconexión macho Scotchlok, desnuda, calibre 16-14 AWG, paquete de 100.
| Item | Male Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Connection Type | Crimp |
| Wire Range | 16 to 14 AWG |
| Insulation Type | Bare |
| Overall Length | 0.73 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 347 deg F |
| Connection Material | Copper |
| Barrel Inside Dia. | 0.085 in |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Terminal Type | Male Disconnect |
| Fastener Orientation | Male |
| Barrel Inside Diameter | 0.085 in |
| Terminal Style | Standard |
| Maximum Conductor Size | 14 AWG |
| Tab Width | 1/4 in |
| Connection Width | 1/4 in |
| Insulation Material | Non-insulated |
| Pad Width | 1/4 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Disconnect Type | Male |

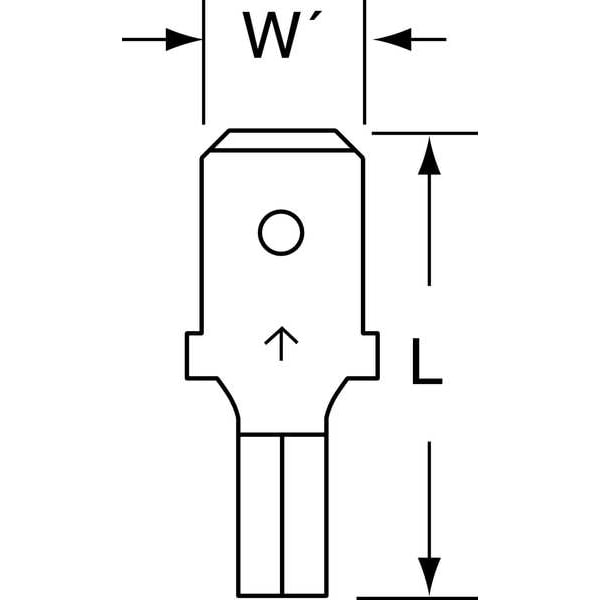

| Male Tab Width (W') | 1/4 in |
| Minimum Conductor Size | 16 AWG |
| Package Quantity | 100 |
