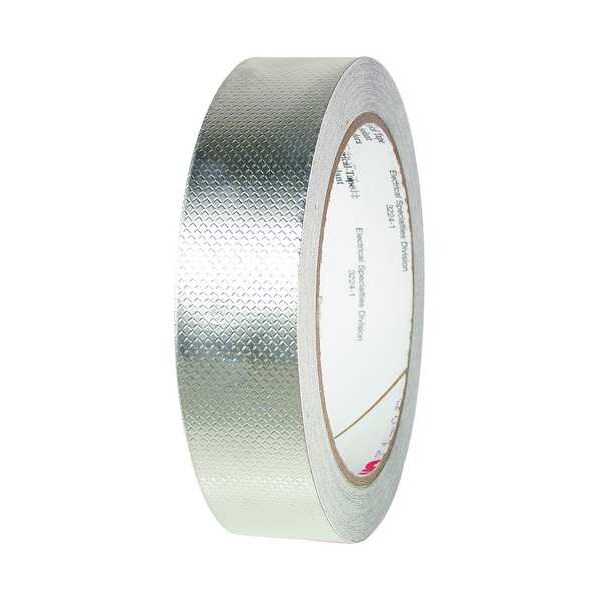

Shielding Foil Tape, 1 In x 18 yd., PK9
| Tape Color | Silver |
|---|---|
| Series | 1345 |
| Tape Thickness | 4 mil |
| Performance Temp. | -40 Degrees to 130 Degrees C |
| Item | Conductive Electrical Tape |
| Tape Tensile Strength | 25 lb/in |
| Color | Copper |
| Width | 1 in |
| Length | 18 yd |
| Tape Backing Material | Copper Foil |
| Shape | Continuous Roll |
| Standards | RoHS 2011/65/EU, UL Listed |
| Tape Core Diameter | 3 in |
| Adhesion Strength | 45 oz/in |
| Material | Copper Foil |
| Duct Tape Width | 1 in |
| Duct Tape Adhesive | Acrylic |
| Duct Tape Length | 18 yd |
| Number of Adhesive Sides | 1 |
| Adhesive Properties | Conductive |
| Product Form | Continuous Roll |
| Tape Adhesive Material | Acrylic |
| Minimum Tape Performance Temperature | -40 deg F |
| Voltage Rating | 600 V |
| Metric Tape Length | 16.5 m |
| Tape Sub-Type | Ultra-Conductive Embossed Foil |
| Tape Type | Foil |
| Liner Included | Yes |
| Imperial Tape Length | 54 ft |
| Maximum Tape Performance Temperature | 266 deg F |
| Breaking Strength | 25 lb/in |
| Tape Backing Construction | Foil |
| Shielding Effectiveness | 66 dB |
| Tape Adhesive Format | Single-Sided |
| Tape Brand | 3M(TM) |
| Metric Tape Width | 25.4 mm |
| Adhesion to Steel | 45 oz/in |
| Imperial Tape Width | 1 in |
| Specifications Met | RoHS, UL Listed |
| Package Quantity | 9 |
| Tape Properties | Electrically Conductive, EMI-Shielding |
| Tape Resistance Properties | Corrosion-Resistant |
| Pre-Cut Width | Not Applicable |
| Backing Material Finish | Tin-Plated |
| Pre-Cut Length | Not Applicable |
| Pre-Cut Shape | Not Applicable |
| Imperial Tape Shape Diameter | Not Applicable |
| Country of Origin (subject to change) | Taiwan, Province of China |
