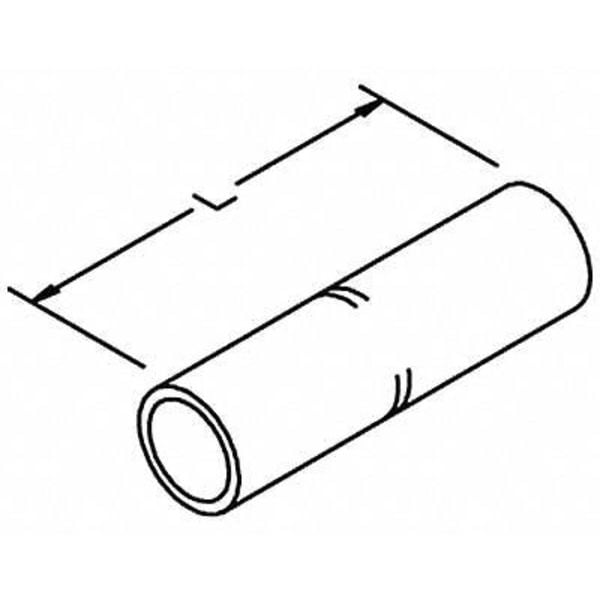

Short-Barrel Splice, 3.38 in. L, Black, PK3
| Item | Short-Barrel Splice |
|---|---|
| Material | Copper |
| Overall Length | 3.38 in |
| Length | 3.38 in |
| Die Code | 106 |
| Outside Dia. | 1.3 in |
| Wire Gauge | 750 kcmil |
| Standards | CSA Certified, UL Listed |
| Color Code | Black |
| Length (Straight Wireway) | 3.38 in |
| Minimum Wire Size | 750 kcmil |
| Barrel Inside Diameter | 1.03 in |
| Maximum Wire Size | 750 kcmil |
| Seam Style | Seamless |
| Barrel Finish | Tin Plated |
| Number of Crimps | 6 |
| Contact Finish | Tin |
| Minimum Operating Temperature | 73 deg F |
| Barrel Size | Standard |
| Contact Material | Copper |
| Barrel Outside Diameter | 1.3 in |
| Termination Style | Crimp |
| Compatible with Product Type | Copper Conductor |
| Compatible with Series | 11000 |
| Compatible Installation Tool Model Number | 10000-11000 |
| Maximum Voltage | 35 kV |
| Special Features | Color Coded Printing For Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| Maximum Wire Insulation Diameter | 1.3 in |
| For Wire Type | Stranded |
| For Conductor Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| RoHS Compliant | Yes |
| Package Quantity | 3 |
