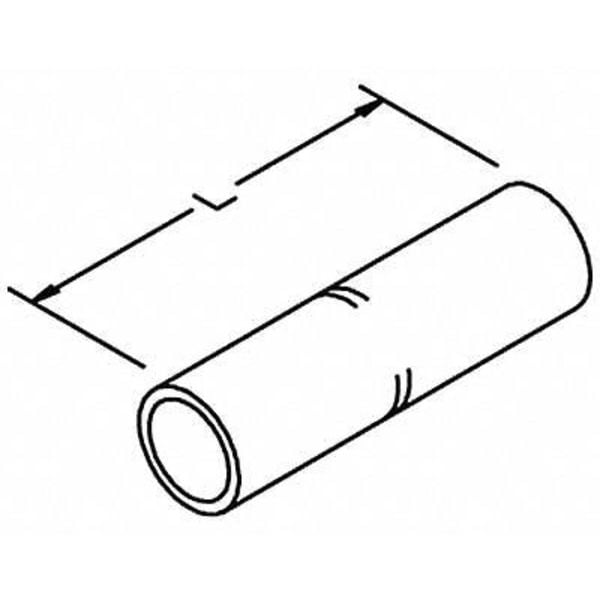

Short-Barrel Splice, 3.88 in. L, Wht, PK3
| Item | Short-Barrel Splice |
|---|---|
| Material | Copper |
| Length | 3.88 in |
| Color Code | White |
| Overall Length | 3.38 in |
| Standards | UL Listed |
| Outside Dia. | 1-1/2 in |
| Wire Gauge | 1,000 kcmil |
| Die Code | P44RT (4) crimps, Burndy: S44RT (4) crimps |
| Length (Straight Wireway) | 3.88 in |
| Barrel Size | Standard |
| Maximum Wire Insulation Diameter | 1-1/2 in |
| Special Features | Color Coded Printing For Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| Maximum Voltage | 35 kV |
| For Conductor Material | Copper |
| Compatible Installation Tool Model Number | 10000-11000 |
| Minimum Operating Temperature | 73 deg F |
| For Wire Type | Stranded |
| Barrel Inside Diameter | 1.17 in |
| Minimum Wire Size | 1,000 kcmil |
| Number of Crimps | 8 |
| Maximum Wire Size | 1,000 kcmil |
| Contact Finish | Tin |
| Barrel Outside Diameter | 1-1/2 in |
| Compatible with Product Type | Copper Conductor |
| Barrel Finish | Tin Plated |
| Termination Style | Crimp |
| Compatible with Series | 11000 |
| Contact Material | Copper |
| RoHS Compliant | Yes |
| Seam Style | Seamless |
| Maximum Operating Temperature | 221 deg F |
| Package Quantity | 3 |
