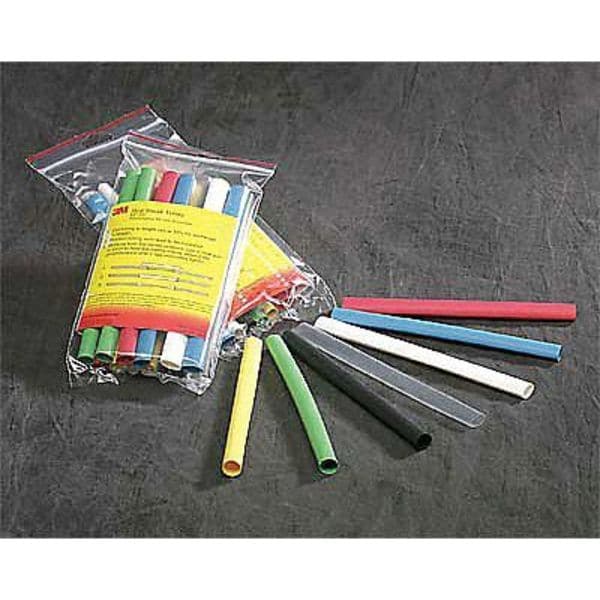

Shrink Tubing, 0.046in ID, Clear, 4ft, PK250
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 2:1 |
| Shrink Tubing Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 0.046 in |
| Material | Modified Polyvinylidene Fluoride |
| Color | Clear |
| Length | 4 ft |
| Temp. Range | -67 to 347 deg F |
| Min. Shrink Temp. | 250 deg F |
| Shrink Tubing Material | Modified Polyvinylidene Fluoride |
| I.D. After Shrinking | 0.02 in |
| Standards | AMS-3632, CSA, OFT Certified, RoHS 2011/65/EU, SAE AS23053/8, UL Listed |
| Flame Retardant | Yes |
| Max. Voltage | 600 V |
| Shrink Tubing Type | Heat Shrink Tubing |
| Use Shrink Tubing With Wire Size | 23 to 17 AWG |
| Shrink Tubing Length | 4 ft |
| Shrink Tubing Usable Temp. Range | -67 to 347 deg F |
| Shrink Tubing Adhesive Lined | No |
| Features | Offers Shrink-Fit Protection and Strain Relief Of Wires, Solder Joints, Terminals and Connections, Suitable for Marking Electronics and Appliances, Transparent Insulation for Easy, See-Through Inspection and Identification |
| Shrink Tubing Wall Thickness After Shrinking | 0.01 in |
| I.D. Before Shrinking | 0.05 in |
| Adhesive Lined | No |
| Use With Wire Size | 23 AWG to 17 AWG |
| Tubing Wall Type | Thin Wall |
| Package Style | Individual Pieces |
| Max. Temp. Rating | 347 deg F |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant, Fuel and Oil Resistant, High Heat Resistant, Solvent Resistant |
| Min. Temp. Rating | -67 deg F |
| Wall Thickness After Shrinking | 0.01 in |
| Dielectric Strength | 900 V |
| Length (Straight Wireway) | 4 ft |
| Package Quantity | 250 |
