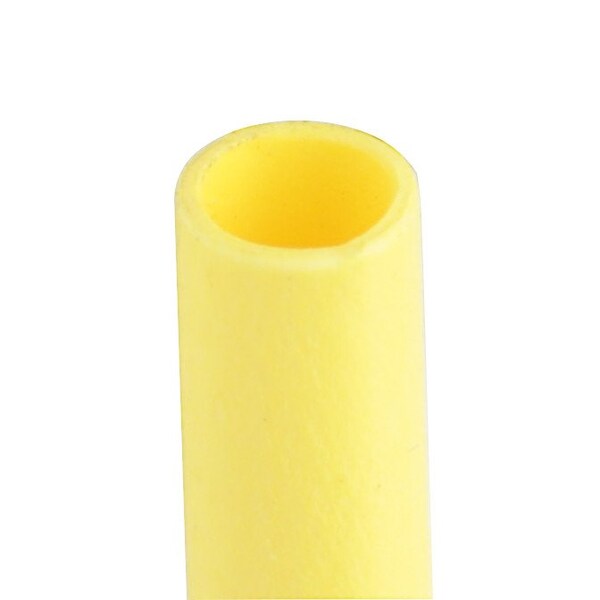

Shrink Tubing, 0.046in ID, Ylw, 1000ft, PK3
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 2:1 |
| Shrink Tubing Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 0.046 in |
| Material | Polyolefin |
| Color | Yellow |
| Length | 1,000 ft |
| Temp. Range | -67 to 275 deg F |
| Min. Shrink Temp. | 212 deg F |
| Shrink Tubing Usable Temp. Range | -67 to 275 deg F |
| Shrink Tubing Adhesive Lined | No |
| Use Shrink Tubing With Wire Size | 23 to 17 AWG |
| Shrink Tubing Material | Polyolefin |
| Shrink Tubing Wall Thickness After Shrinking | 0.016 in |
| Shrink Tube Material Type | Flexible |
| Features | Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections |
| Shrink Tubing Type | Heat Shrink Tubing |
| Flame Retardant | Yes |
| Max. Voltage | 600 V |
| Shrink Tubing Length | 1,000 ft |
| Standards | CSA Certified, RoHS 2011/65/EU, UL E39100 |
| I.D. After Shrinking | 0.02 in |
| I.D. Before Shrinking | 0.05 in |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | No |
| Use With Wire Size | 23 AWG to 17 AWG |
| Shrink Tubing Properties | Acid and Alkali Resistant, Solvent Resistant |
| Dielectric Strength | 900 V |
| Package Style | Cut to Length |
| Min. Temp. Rating | -67 deg F |
| Max. Temp. Rating | 275 deg F |
| Wall Thickness After Shrinking | 0.02 in |
| Length (Straight Wireway) | 1,000 ft |
| Package Quantity | 3 |
