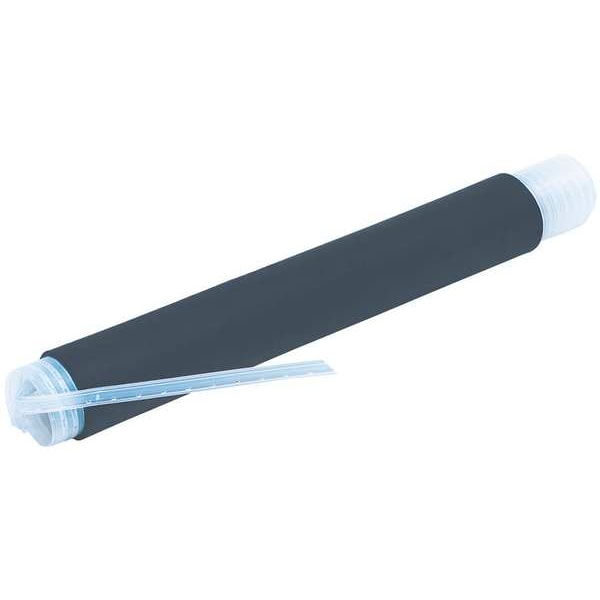

Shrink Tubing, 0.95in ID, Gray, 8in
| Item | Cold Shrink Silicon Insulator |
|---|---|
| Shrink Ratio | 2:1 |
| Shrink Tubing Wall Type | Medium Wall |
| Shrink Tubing I.D. Before Shrinking | 0.95 in |
| Material | Silicone |
| Color | Gray |
| Length | 8 in |
| Temp. Range | -67 to 500 deg F |
| Shrink Tubing Type | Cold Shrink Tubing |
| Shrink Tubing Length | 8 in |
| Shrink Tubing Adhesive Lined | No |
| Use Shrink Tubing With Wire Size | 1/0 to 3/0 AWG |
| Standards | ANSI C119.1 |
| Shrink Tubing Material | EPDM Rubber |
| I.D. After Shrinking | 0.48 in |
| Features | Requires No Tools or Heat, Moisture-Tight Seal, Suitable for Direct Buried Applications |
| Max. Voltage | 1,000 V |
| Flame Retardant | No |
| Shrink Tube Material Type | Flexible |
| Shrink Tubing Usable Temp. Range | -66 to 500 deg F |
| I.D. Before Shrinking | 0.95 in |
| Adhesive Lined | No |
| Tubing Wall Type | Medium Wall |
| Use With Wire Size | 1/0 AWG to 3/0 AWG |
| Max. Temp. Rating | 500 deg F |
| Package Style | Individual Pieces |
| Dielectric Strength | 1,000 V |
| Wall Thickness After Shrinking | 0.11 in |
| Min. Temp. Rating | -67 deg F |
| Shrink Tubing Properties | UV Light Resistant |
| Length (Straight Wireway) | 8 in |
| Inner Diameter Before Shrink | 0.949 in |
| Application | Insulation, mechanical protection, repair |
| Maximum Operating Temperature (Celsius) | 260°C |
| Cable Shielding | Tape Shield, UniShield®, Wire Shield |
| Voltage | 1,000 V |
| Operating Temperature (Celsius) | -55 to 260°C |
| Minimum Operating Temperature (Celsius) | -55°C |
| Maximum Conductor Size | 157 kcmil |
| Minimum Conductor Size | 118 kcmil |
| Number of Conductors | 1 |
| Product Type | Cold Shrink |
| Inner Diameter After Shrink | 0.488 in |
| Conductor Sizes | 1/0 AWG, 2/0 AWG, 3/0 AWG |
| Splice Type | Cold Shrink |
| Model | Cold-shrink |
| Voltage Application | Low Voltage |
| Cable Type | Cable with plastic and rubber insulation |
| Conductor Material | Aluminum, Copper |
| Package Quantity | 1 |
