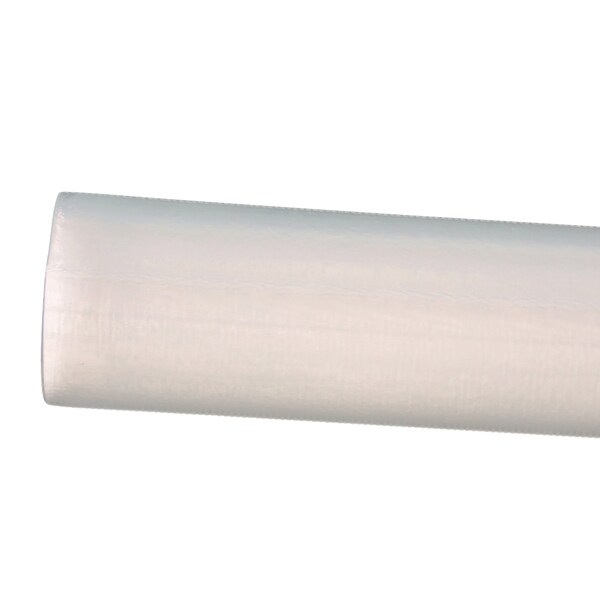

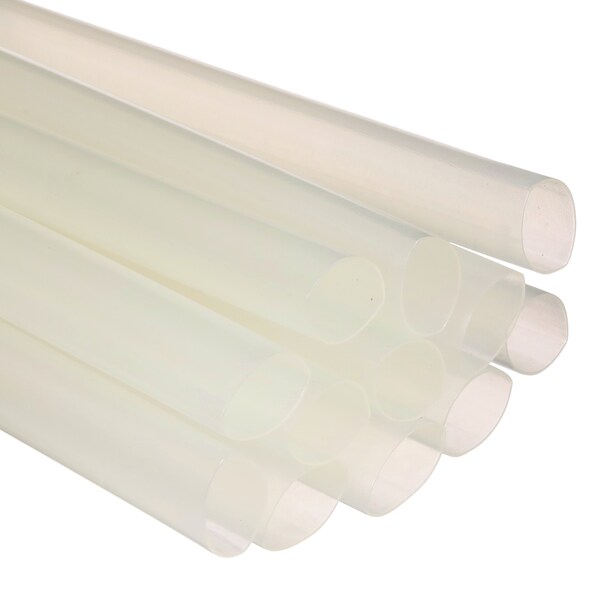

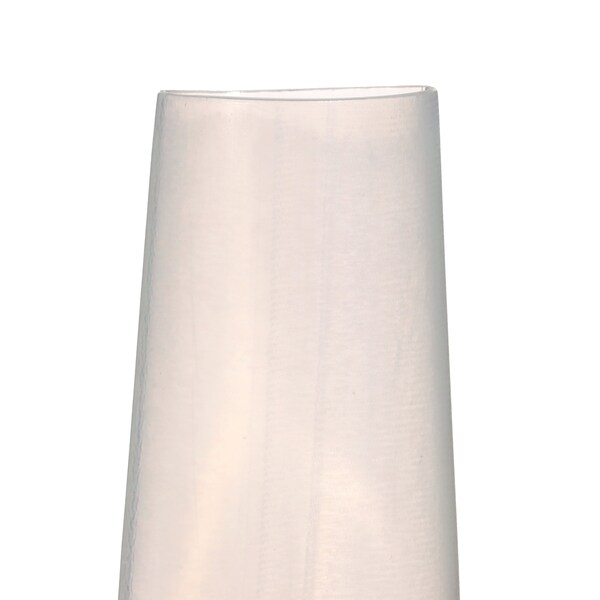

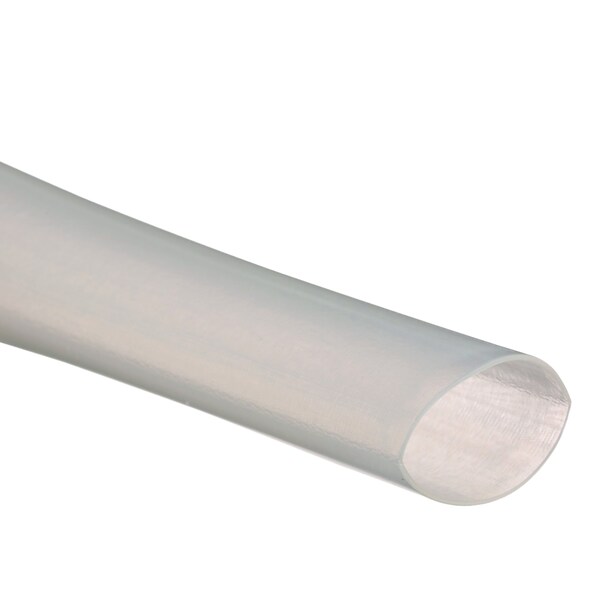

Shrink Tubing, 1.0in ID, Clear, 4ft, PK24
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 3:1 |
| Shrink Tubing Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1 in |
| Material | Polyolefin with Adhesive |
| Color | Clear |
| Length | 4 ft |
| Temp. Range | -67 to 230 deg F |
| Min. Shrink Temp. | 250 deg F |
| Max. Voltage | 600 V |
| Shrink Tubing Material | Polyolefin |
| Use Shrink Tubing With Wire Size | 4/0 AWG to 500 kcmil |
| Shrink Tubing Wall Thickness After Shrinking | 0.1 in |
| Shrink Tubing Adhesive Lined | Yes |
| Shrink Tubing Type | Heat Shrink Tubing |
| Standards | CSA File LR38227, UL E157227 |
| Shrink Tubing Length | 4 ft |
| Shrink Tube Material Type | Flexible |
| Shrink Tubing Usable Temp. Range | -67 to 230 deg F |
| I.D. After Shrinking | 0.32 in |
| Flame Retardant | Yes |
| I.D. Before Shrinking | 1 in |
| Features | Dual-Wall Construction, Moisture Seal Protection, Skintight Fit, Strain Relief Protection, Thermoplastic Adhesive Internal Layer |
| Adhesive Lined | Yes |
| Use With Wire Size | 4/0 AWG to 500 MCM |
| Tubing Wall Type | Thin Wall |
| Max. Temp. Rating | 230 deg F |
| Dielectric Strength | 600 V |
| Package Style | Individual Pieces |
| Min. Temp. Rating | -67 deg F |
| Wall Thickness After Shrinking | 0.1 in |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant |
| Length (Straight Wireway) | 4 ft |
| Package Quantity | 24 |
