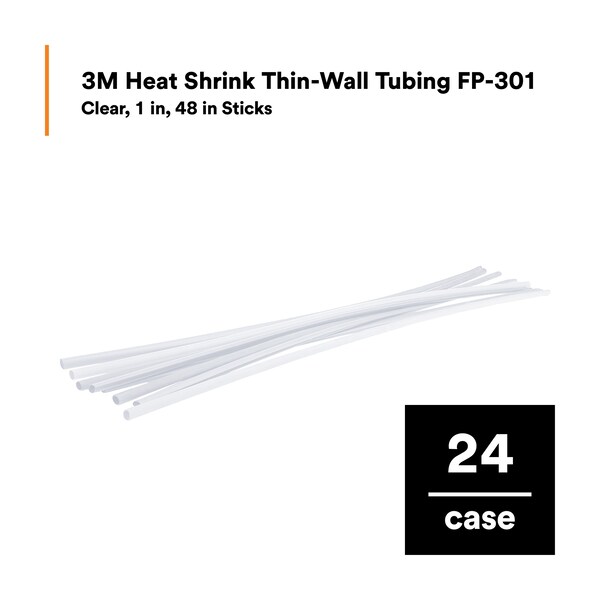

Shrink Tubing, 1.0in ID, Clear, 4ft, PK24
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 2:1 |
| Shrink Tubing Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1 in |
| Material | Polyolefin |
| Color | Clear |
| Length | 4 ft |
| Temp. Range | -67 to 275 deg F |
| Min. Shrink Temp. | 212 deg F |
| Shrink Tubing Material | Polyolefin |
| Max. Voltage | 600 V |
| Shrink Tubing Length | 4 ft |
| Features | Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections |
| I.D. After Shrinking | 1/2 in |
| Shrink Tubing Type | Heat Shrink Tubing |
| Flame Retardant | Yes |
| Use Shrink Tubing With Wire Size | 4/0 AWG to 500 kcmil |
| Shrink Tubing Usable Temp. Range | -67 to 275 deg F |
| Shrink Tube Material Type | Flexible |
| Shrink Tubing Adhesive Lined | No |
| Standards | CSA Certified, RoHS 2011/65/EU, SAE AS23053/5, Class 1, UL E39100 |
| Shrink Tubing Wall Thickness After Shrinking | 0.035 in |
| I.D. Before Shrinking | 1 in |
| Use With Wire Size | 4/0 AWG to 500 MCM |
| Adhesive Lined | No |
| Tubing Wall Type | Thin Wall |
| Shrink Tubing Properties | Acid and Alkali Resistant, Solvent Resistant |
| Min. Temp. Rating | -67 deg F |
| Dielectric Strength | 600 V |
| Wall Thickness After Shrinking | 0.04 in |
| Max. Temp. Rating | 275 deg F |
| Package Style | Individual Pieces |
| Length (Straight Wireway) | 4 ft |
| Package Quantity | 24 |
