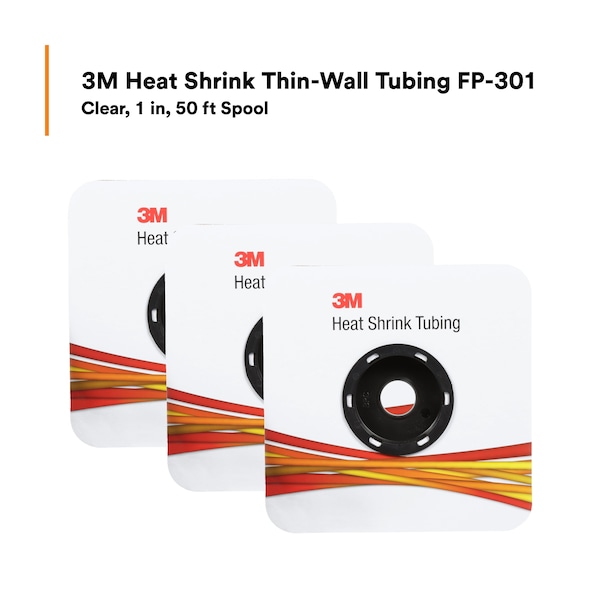

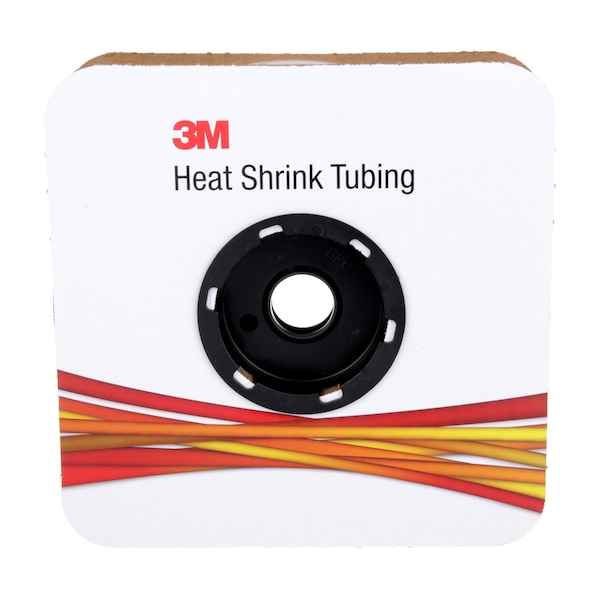

Shrink Tubing, 1.0in ID, Clear, 50ft
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 2:1 |
| Shrink Tubing Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1 in |
| Material | Polyolefin |
| Color | Clear |
| Length | 50 ft |
| Temp. Range | -67 to 275 deg F |
| Min. Shrink Temp. | 212 deg F |
| Shrink Tubing Usable Temp. Range | -67 to 275 deg F |
| Shrink Tubing Adhesive Lined | No |
| Standards | CSA Certified, RoHS 2011/65/EU, SAE AS23053/5, Class 1, UL E39100 |
| Shrink Tubing Material | Polyolefin |

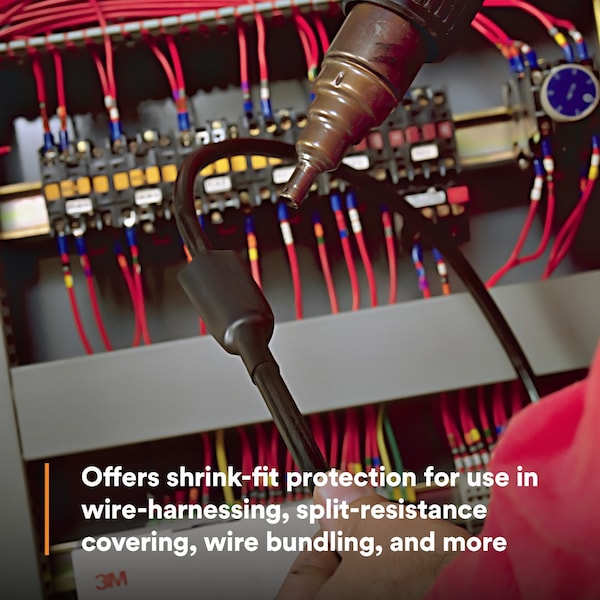

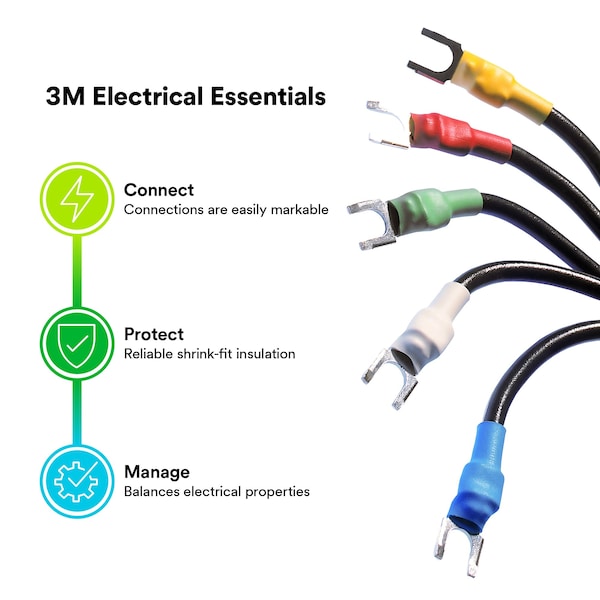

| Features | Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections |

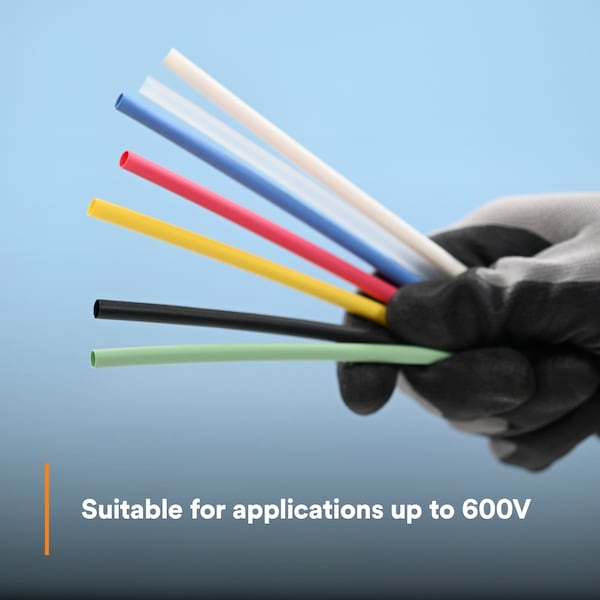

| Max. Voltage | 600 V |
| Flame Retardant | Yes |
| Shrink Tubing Type | Heat Shrink Tubing |
| Shrink Tubing Length | 50 ft |
| Shrink Tubing Wall Thickness After Shrinking | 0.035 in |

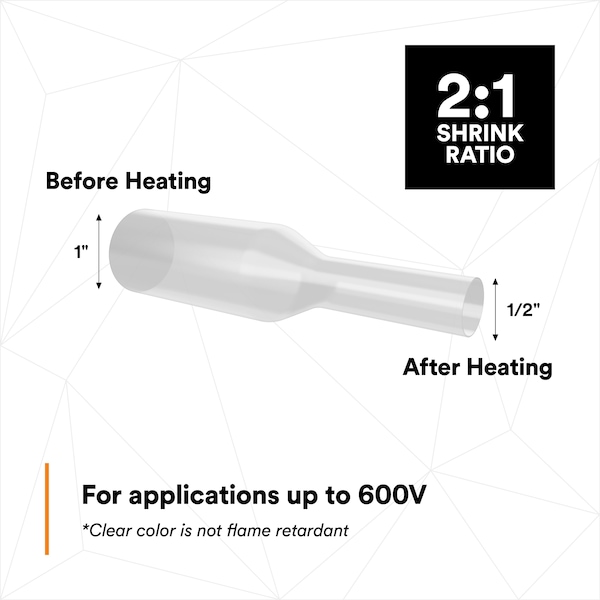

| I.D. After Shrinking | 1/2 in |
| Use Shrink Tubing With Wire Size | 4/0 AWG to 500 kcmil |
| Shrink Tube Material Type | Flexible |
| I.D. Before Shrinking | 1 in |
| Adhesive Lined | No |
| Use With Wire Size | 4/0 AWG to 500 MCM |
| Tubing Wall Type | Thin Wall |
| Dielectric Strength | 600 V |

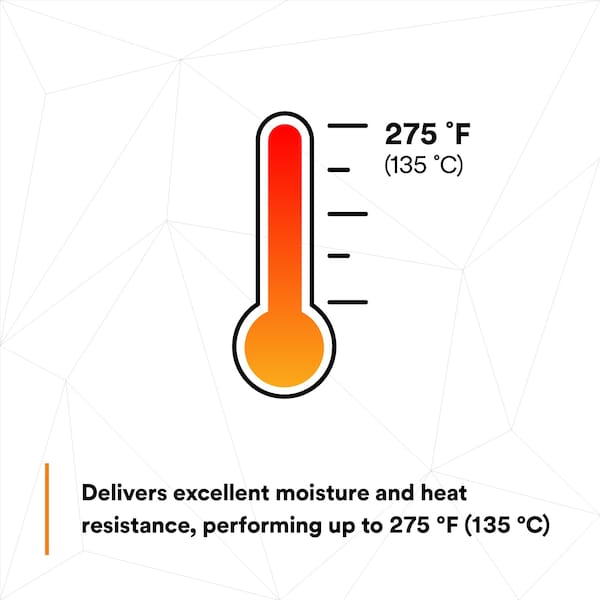

| Max. Temp. Rating | 275 deg F |
| Min. Temp. Rating | -67 deg F |
| Wall Thickness After Shrinking | 0.04 in |
| Shrink Tubing Properties | Acid and Alkali Resistant, Solvent Resistant |
| Package Style | Cut to Length |
| Length (Straight Wireway) | 50 ft |
| Operating Temperature (Fahrenheit) | -67 to 275°F |
| Elongation | 4 |
| Maximum Operating Temperature (Celsius) | 135 Degree Celsius |
| Non-Corrosive | Yes |
| Flammability Rating | No Flame Rating |
| Inner Diameter Before Shrink (Metric) | 25.4 mm |
| Color Family | Transparent |
| Tensile Strength (Imperial) | 2400 Pound-Force Per Square Inch |
| Tubing Type | Wall |
| Inner Diameter Before Shrink (Imperial) | 1 in |
| Recovered Inner Diameter (metric) | 12.7 mm |
| Recovered Inner Diameter | 1 in |
| Additional Flammability Rating | 23053/5 class1 |
| Product Key | FS12 FP-SM 1.0 FPA |
| Operating Temperature Range (Fahrenheit) | -67 to 275°F |
| Inner Diameter After Shrink (Imperial) | 1/2 in |
| Operating Temperature Range (Celsius) | -55 to 135°C |
| Expanded Inner Diameter | 1 in |
| Inner Diameter After Shrink (Metric) | 12.7 mm |
| Maximum Operating Temperature (Fahrenheit) | 275 deg (Fahrenheit) |
| Product Color | Transparent |
| Applicable SAE-AMS-DTL-23053 Specifications | 23053/5 class 1 |
| Overall Length (Imperial) | 50 ft |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Overall Length (Metric) | 15.2 m |
| Expanded Inner Diameter (metric) | 25.4 mm |
| UL Approval | Yes |
| Operating Temperature (Celsius) | -55 to 135 Degrees Celsius |
| Package Quantity | 1 |
