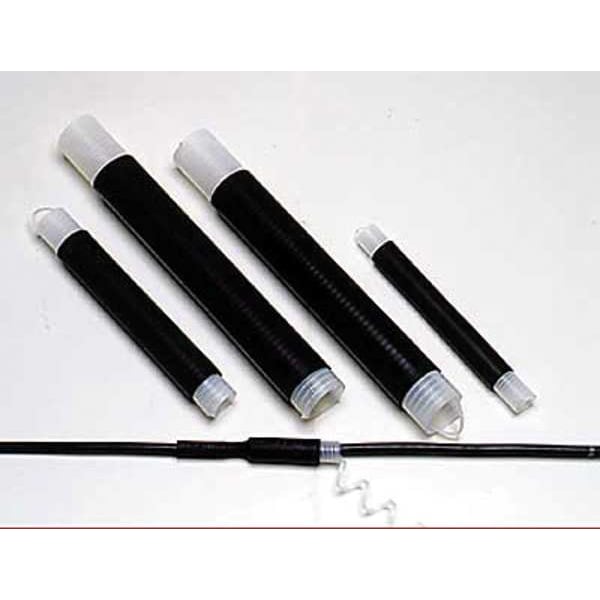

Shrink Tubing, 2.67in ID, Black, 18in, PK10
| Item | Cold Shrink Insulator |
|---|---|
| Shrink Ratio | Not Rated |
| Shrink Tubing Wall Type | Medium Wall |
| Shrink Tubing I.D. Before Shrinking | 2.67 in |
| Material | EPDM Rubber |
| Color | Black |
| Length | 18 in |
| Temp. Range | -40 to 194 deg F |
| Shrink Tubing Type | Cold Shrink Tubing |
| Shrink Tubing Length | 18 in |
| Standards | ANSI C119.1 |
| Max. Voltage | 1,000 V |
| Shrink Tubing Material | EPDM Rubber |
| I.D. After Shrinking | 1.27 in |
| Shrink Tube Material Type | Flexible |
| Shrink Tubing Adhesive Lined | No |
| Shrink Tubing Usable Temp. Range | -40 to 194 deg F |
| Use Shrink Tubing With Wire Size | 900 to 1000 kcmil |
| Features | Requires No Tools or Heat, Moisture-Tight Seal, Suitable for Direct Buried Applications |
| Flame Retardant | No |
| I.D. Before Shrinking | 2.67 in |
| Tubing Wall Type | Medium Wall |
| Adhesive Lined | No |
| Use With Wire Size | 900 MCM to 1000 MCM |
| Shrink Tubing Properties | UV Light Resistant |
| Wall Thickness After Shrinking | Not Applicable |
| Min. Temp. Rating | -40 deg F |
| Max. Temp. Rating | 194 deg F |
| Dielectric Strength | 1,000 V |
| Package Style | Individual Pieces |
| Length (Straight Wireway) | 18 in |
| Maximum Operating Temperature (Celsius) | 90°C |
| Inner Diameter Before Shrink | 2.669 in |
| Minimum Operating Temperature (Celsius) | -40°C |
| Minimum Conductor Size | 900 kcmil |
| Product Type | Splice |
| Application | Insulation, mechanical protection, repair |
| Maximum Conductor Size | 1,000 kcmil |
| Model | Cold-shrink |
| Voltage Application | Low Voltage |
| Conductor Sizes | 1000 kcmil, 900 kcmil |
| Number of Conductors | 1 |
| Maximum Connector Length | 14 in |
| Splice Type | Cold Shrink |
| Cable Shielding | Non-shielded, Tape Shield, UniShield®, Wire Shield |
| Inner Diameter After Shrink | 1.268 in |
| Conductor Material | Aluminum, Copper |
| Voltage | 1,000 V |
| Cable Type | Power Cable |
| Package Quantity | 10 |
