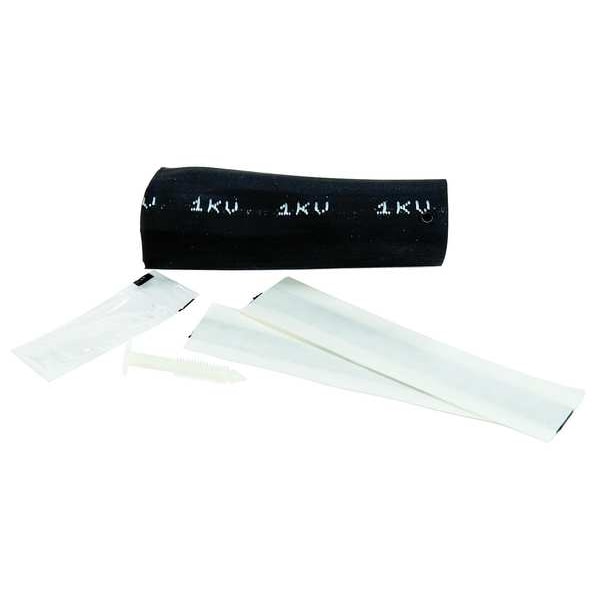

Splice Kits, 16 to 12 AWG, 194F, Blk, 1000V
| Item | Splice Kit |
|---|---|
| Color | Black |
| Material | EPDM Rubber |
| Overall Length | 2.1 in |
| Wire Range | 16 to 12 AWG |
| Includes | (1) Instruction Sheet, (3) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Tubes of Silicone Grease |
| Voltage Rating | 1000V |
| Standards | CSA Approved |
| Max. Voltage | 1,000 V |
| Temp. Range | Up to 194 Degrees F |
| Max. Temp. | 194 deg F |
| Insulation Material | EPDM Rubber |
| Minimum Wire Size | 16 AWG |
| Maximum Conductors | 1 |
| Body Material | EPDM Rubber |
| Maximum Operating Temperature | 194 deg F |
| Maximum Voltage | 1,000 V |
| RoHS Compliant | Yes |
| Heat Shrink Material | EPDM Rubber |
| Maximum Wire Size | 12 AWG |
| Compatible with Product Type | 1-Hole Lug Connections, Pigtail |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Contact Material | Copper |
| Tubing Wall Type | Thick |
| Compatible with Series | 30000 |
| Insulation Coverage | Full Coverage |
| For Wire Type | Motor Lead Cable |
| Resistance Properties | Abrasion-Resistant, Puncture-Resistant |
| Number of Splices | 3 |
| Number of Pieces | 9 |
| Termination Style | Splice |
| Tensile Strength | 1,400 psi |
| Package Quantity | 1 |
