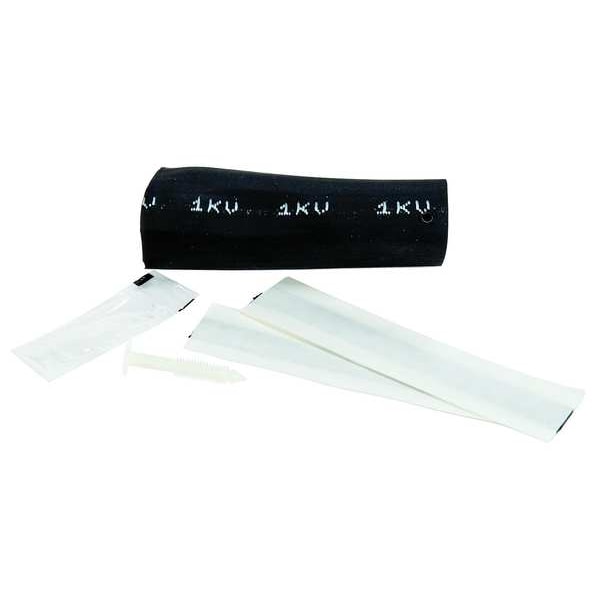

Juegos de empalme, de 4 a 1/0 AWG, 194F, Negro, 1000V
| Item | Splice Kit |
|---|---|
| Wire Range | 4 to 1/0 AWG |
| Material | EPDM Rubber |
| Connection Type | Pigtail |
| Includes | (1) Instruction Sheet, (3) Locking Pins, (3) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Tubes of Silicone Grease |
| Temp. Range | Up to 194 Degrees F |
| Color | Black |
| Max. Voltage | 1,000 V |
| Overall Length | 4.2 in |
| Max. Temp. | 194 deg F |
| Standards | CSA Approved |
| Voltage Rating | 1000V |
| Number of Splices | 3 |
| For Wire Type | Motor Lead Cable |
| Tensile Strength | 1,400 psi |
| Number of Pieces | 12 |
| Compatible with Series | 30000 |
| Maximum Voltage | 1,000 V |
| Heat Shrink Material | EPDM Rubber |
| Termination Style | Splice |
| Maximum Wire Size | 1/0 AWG |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Minimum Wire Size | 4 AWG |
| Insulation Material | EPDM Rubber |
| Maximum Conductors | 1 |
| RoHS Compliant | Yes |
| Resistance Properties | Abrasion-Resistant, Puncture-Resistant |
| Compatible with Product Type | 1-Hole Lug Connections, Pigtail |
| Insulation Coverage | Full Coverage |
| Body Material | EPDM Rubber |
| Maximum Operating Temperature | 194 deg F |
| Contact Material | Copper |
| Tubing Wall Type | Thick |
| Maximum Bolt Length | 3/4 in |
| Insulation Outside Diameter Range | 0.34 to 0.54 in |
| Lug Cover Inner Diameter | 0.95 in |
| Insulation Outside Diameter | 0.34 to 0.54 in |
| Voltage | 1 kV |
| Kit Includes | (3) Pigtail Lug Covers |
| Maximum Operating Voltage | 1 kV |
| Application/Industry | Commercial Construction, Industrial Construction |
| Cable Shielding | Single Conductor Cable |
| Application | Cross Linked Polyethylene Cable, Ethylene Propylene Rubber Cable, For Insulating and Sealing Motor Lead Connections for Copper Conductors, Polyethylene Cable |
| Range Feeder Cable (AWG & kcmil) | 36557 |
| Splice Type | Pigtail Only |
| Package Quantity | 1 |
