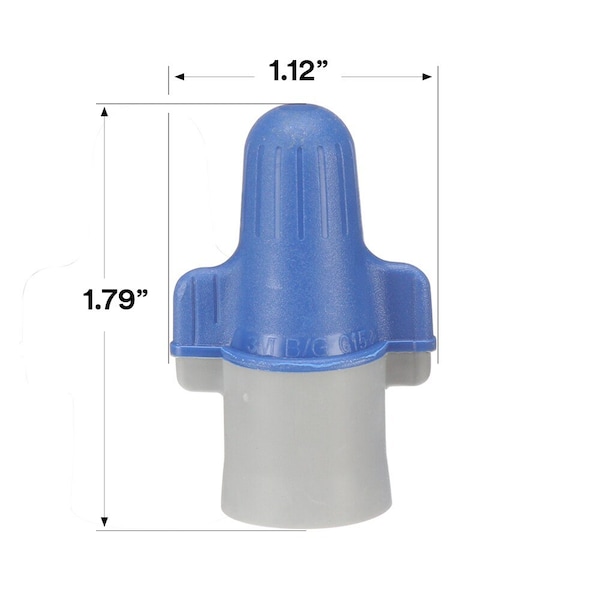

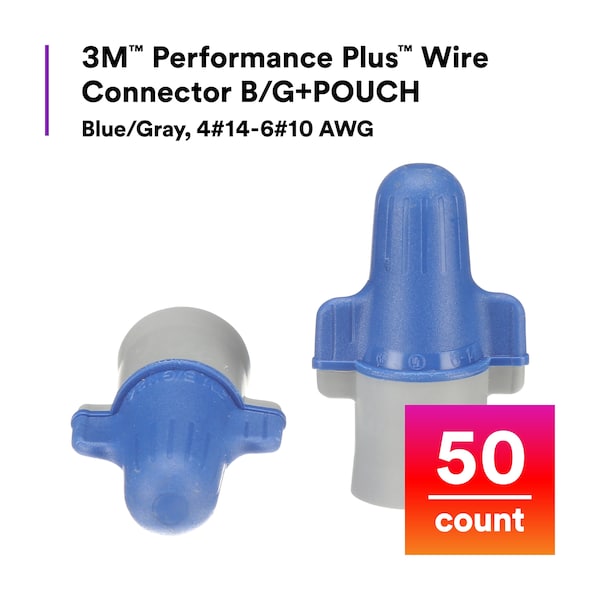

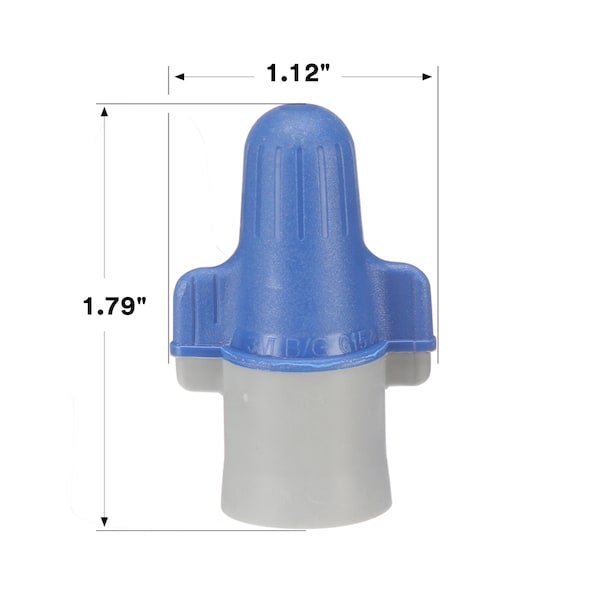

Twist On Wire Connector, 14-6 AWG, PK50, Width: 1.12 in
| Color | Blue/Gray |
|---|---|
| Min. Single Wire Size | 14 AWG |
| Max. Single Wire Size | 6 AWG |
| Series | Performance Plus |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (4) 14 AWG |
| Max. Wire Combination | (2) 6 AWG to (3) 8 AWG |
| Height | 0.76 in |
| Width | 1.12 in |
| Application | Wide Range |

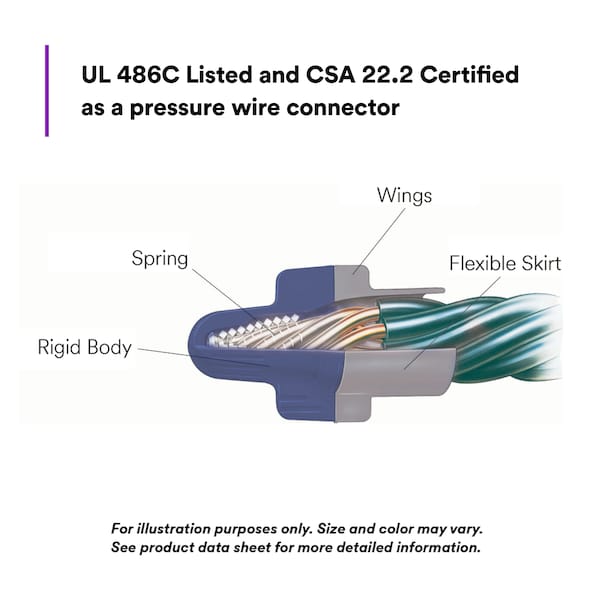

| Standards | CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Minimum Single Wire Size | 14 AWG |
| Maximum Wire Combination | (2) 6 AWG |
| For Conductor Material | Copper |
| Maximum Conductors | 6 |
| RoHS Compliant | Yes |

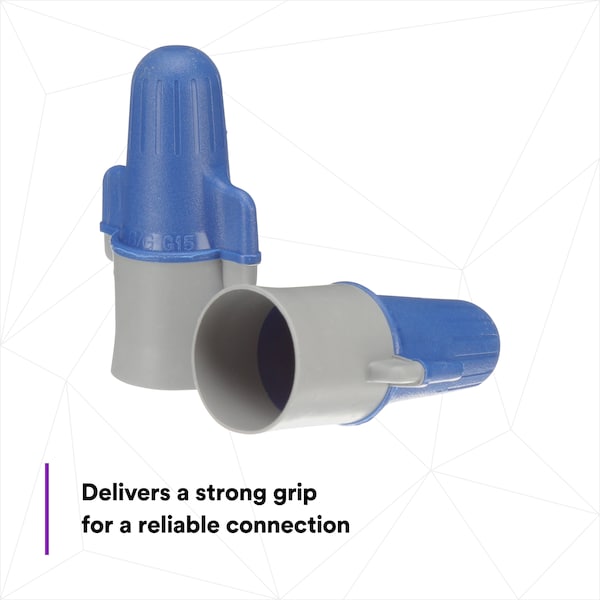

| Special Features | Dual Color Coded, Flexible Spring Expands for Freater Wire Range and Reuse, Strong Bite for a Secure, Reliable Connection |
| Overall Width | 1.12 in |
| Minimum Wire Combination | (4) 14 AWG |
| Overall Height | 1.79 in |
| Maximum Single Wire Size | 6 AWG |
| UL 94 Flammability Rating | V-2 |
| Strip Length | 7/8 in |
| Maximum Operating Temperature | 221 deg F |
| Insulation Material | Polypropylene, Thermoplastic Elastomer |
| Contact Material | Steel |
| Maximum Voltage | 600 V |

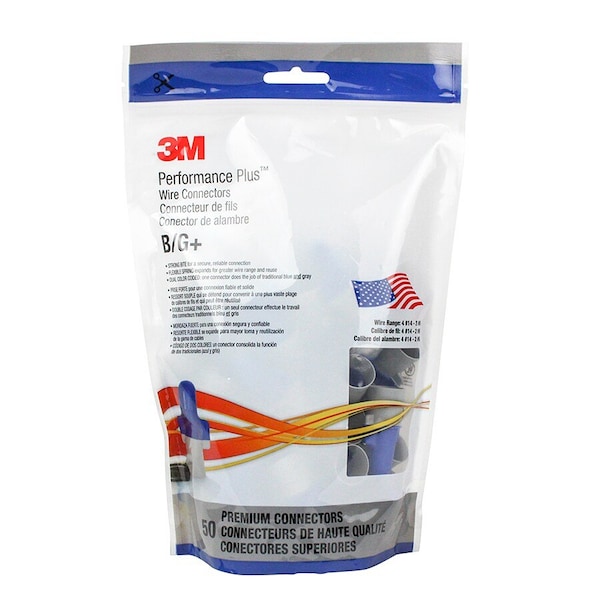

| Package Quantity | 50 |
