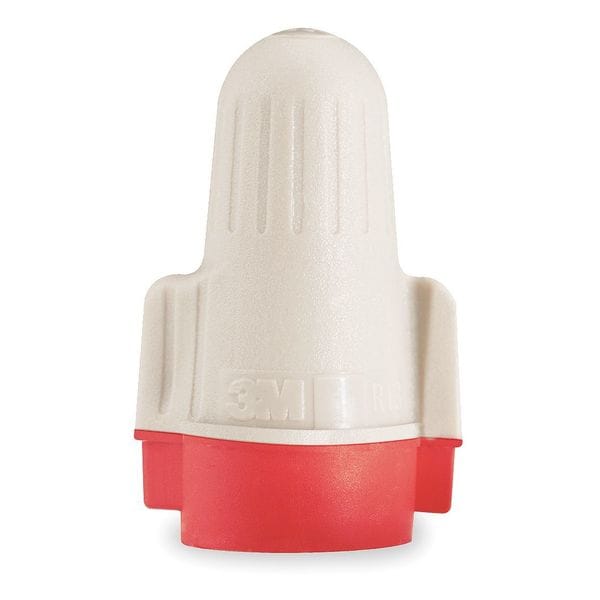

Twist On Wire Connector, 18-12 AWG, PK100
| Color | Red/Tan |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 12 AWG |
| Series | Performance Plus |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (2) 18 AWG |
| Max. Wire Combination | (5) 12 AWG |
| Height | 0.76 in |
| Width | 0.76 in |
| Application | Wide Range |
| Standards | CE, CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | V-2 |
| Insulation Material | Polypropylene, Thermoplastic Elastomer |
| For Conductor Material | Copper |
| Overall Width | 0.76 in |
| Maximum Single Wire Size | 8 AWG |
| Contact Material | Steel |
| RoHS Compliant | Yes |
| Special Features | Compact Size and Red Miniskirt, Incorporates a Spring Mechanism to Spin on Quickly and Tighten Down Easily, Quick Bite Spring Design |
| Maximum Wire Combination | (5) 12 AWG |
| Maximum Conductors | 6 |
| Minimum Wire Combination | (2) 18 AWG |
| Maximum Operating Temperature | 221 deg F |
| Minimum Single Wire Size | 22 AWG |
| Strip Length | 1/2 in |
| Overall Height | 1.17 in |
| Package Quantity | 100 |
