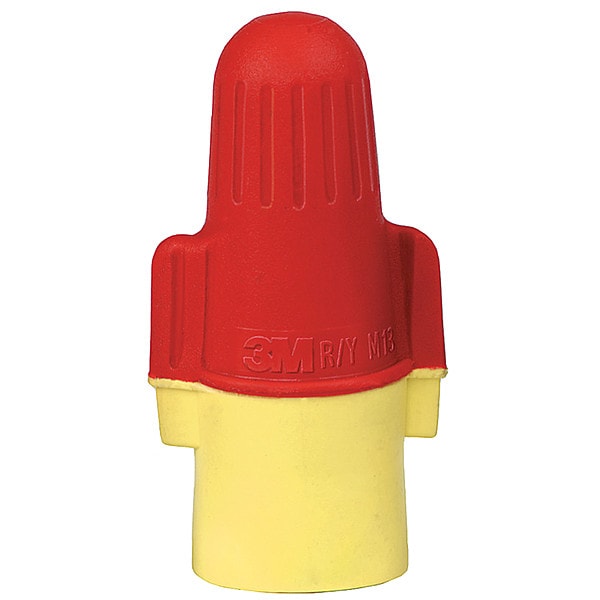

| Color | Red/Yellow |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 8 AWG |
| Series | Performance Plus |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (5) 12 AWG |
| Max. Wire Combination | (2) 18 AWG to (2) 8 AWG |
| Height | 0.76 in |
| Width | 0.76 in |
| Application | Wide Range |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Overall Height | 0.76 in |
| Overall Width | 0.76 in |
| UL 94 Flammability Rating | V-2 |
| Maximum Voltage | 600 V |
| For Conductor Material | Copper |
| RoHS Compliant | Yes |
| Minimum Single Wire Size | 8 AWG |

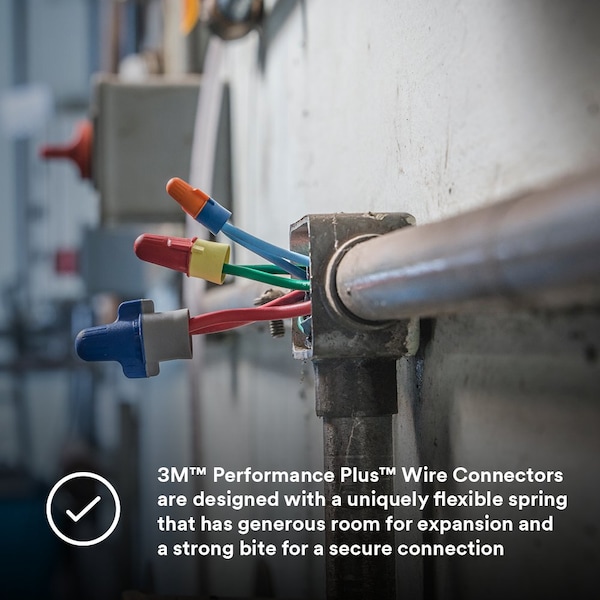

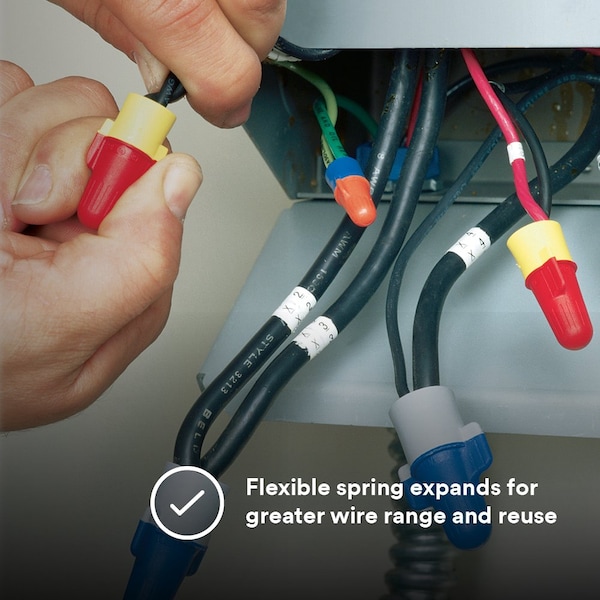

| Special Features | Dual Color Coded, Flexible Spring Expands for Freater Wire Range and Reuse, Strong Bite for a Secure, Reliable Connection |
| Maximum Operating Temperature | 221 deg F |
| Maximum Single Wire Size | 8 AWG |
| Insulation Material | Plastic |
| Maximum Wire Combination | (2) 8 AWG |
| Minimum Wire Combination | (5) 12 AWG |
| Package Quantity | 500 |
