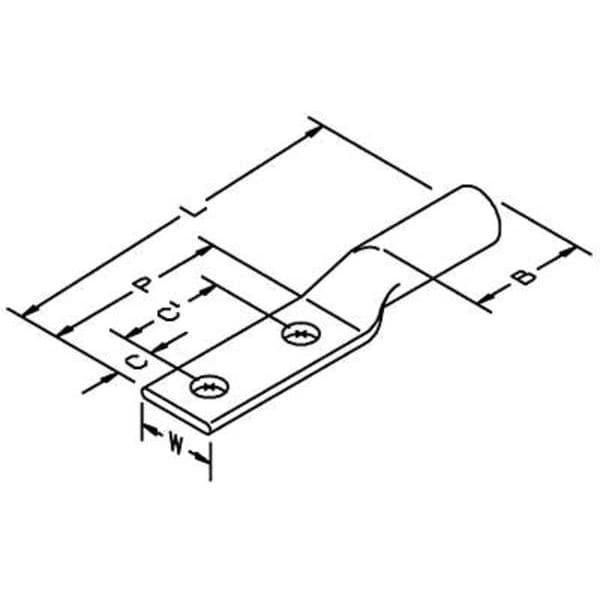

Two Hole Lug Compress Conct, 2/0 AWG, PK10
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.81 in |
| Material | Copper |
| Length | 5.03 in |
| Color Code | Black |
| Plate Material | Tin |
| Peep Hole | No |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Die Code | 100, 13 |
| Stud Size | 1/2 in |
| Barrel Length | Long |
| Hole Center to Center | 1.75 in |
| Tongue Style | Standard |
| Item | Two-Hole Lug Compression Connector |
| Hole Center to End | 0.63 in |
| Length (Straight Wireway) | 5.03 in |
| Tongue Width | 0.81 in |
| Maximum Voltage | 35 kV AC |
| Barrel Outside Diameter | 0.56 in |
| RoHS Compliant | Yes |
| Overall Width | 0.81 in |
| Inspection Hole | No |
| For Wire Type | Stranded |
| For Stud Size | 1/2 in |
| Tongue Angle | Straight |
| Seam Style | Seamless |
| Termination Style | Crimp |
| Barrel Size | Long |
| Overall Length | 5.03 in |
| Barrel Style | Chamfered, Seamless |
| Special Features | High-Conductivity Construction |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| For Conductor Material | Copper |
| Tongue Length | 3 in |
| Barrel Inside Diameter | 0.44 in |
| Contact Finish | Tin |
| For Wire Size | 2/0 AWG |
| Package Quantity | 10 |
