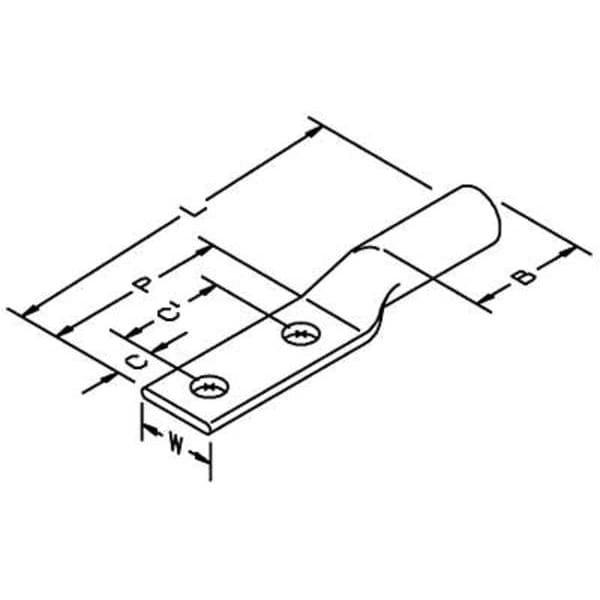

Two Hole Lug Connector, 500 kcmil, PK10
| Cable Size | 500 kcmil |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.53 in |
| Material | Copper |
| Length | 6.16 in |
| Color Code | Brown |
| Peep Hole | No |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Item | Two-Hole Compression Lug |
| Hole Center to End | 0.63 in |
| Barrel Length | Long |
| Tongue Style | Standard |
| Plate Material | Tin |
| Stud Size | 1/2 in |
| Standards | CSA Certified, UL Listed |
| Die Code | 20 |
| Hole Center to Center | 1.75 in |
| Length (Straight Wireway) | 6.16 in |
| Overall Length | 6.16 in |
| Tongue Length | 3 in |
| Special Features | Corrosion Resistance, Good Conductivity, Reliable Performance, Secure Fit |
| Overall Width | 1.53 in |
| Maximum Voltage | 35 kV AC |
| RoHS Compliant | Yes |
| Barrel Size | Long |
| Inspection Hole | No |
| Tongue Width | 1.53 in |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| For Stud Size | 1/2 in |
| For Conductor Material | Copper |
| Contact Finish | Tin |
| Barrel Outside Diameter | 1.06 in |
| Tongue Angle | Straight |
| For Wire Size | 500 kcmil |
| Barrel Style | Seamless |
| Barrel Inside Diameter | 0.83 in |
| Seam Style | Seamless |
| For Wire Type | Stranded |
| Termination Style | Crimp |
| Product Series | 30,000 |
| Center of Hole to End of Pad | 0.63 in |
| Center of Hole to Center of Hole | 1-3/4 in |
| Lug Type | Compression Lugs |
| For Use With | Copper Conductor Only |
| Connector Description | Two hole |
| Number of Stud Holes | 2 |
| Maximum Operating Voltage | 35 kV |
| Package Quantity | 10 |
