Product Description

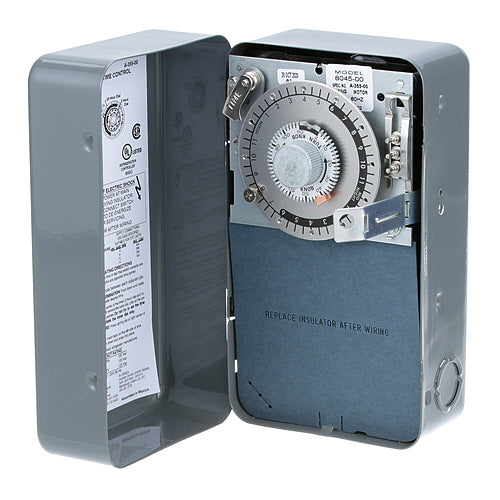

This item for Mavrik MPN 421442 is an electro-mechanical timer designed for defrost control. It operates on 120V with a switching capability of one normally open and one normally closed contact rated for forty amps and two horsepower. The product allows for adjustable defrost settings with a range from one to six cycles per day and a defrost duration adjustable from four to one hundred ten minutes in two-minute increments.
Electro-mechanical timer for precise control
Adjustable defrost frequency and duration
High capacity switching for heavy-duty applications
Product Highlights
This defrost control timer is crucial for maintaining optimal function in refrigeration systems.
Product Information
Standard Information
Weight: 4.4625 pounds
Dimensions: 9 inches x 4.875 inches x 4.75 inches
Technical Specifications
Timer Type: Electro-mechanical
Voltage Rating: 120V
Switching Capability: 1 N.O., 1 N.C.
Current Rating: 40A
Horsepower Rating: 2HP
Defrost Frequency: 1 to 6 cycles/day
Adjustable Duration: 4 to 110 minutes
Trippers Pins: 4 included
Product DescriptionThis item for Mavrik MPN 421442 is an electro-mechanical timer designed for defrost control. It operates on 120V with a switching capability of one normally open and one normally closed contact rated for forty amps and two horsepower. The product allows for adjustable defrost settings with a range from one to six cycles per day and a defrost duration adjustable from four to one hundred ten minutes in two-minute increments.
Electro-mechanical timer for precise control
Adjustable defrost frequency and duration
High capacity switching for heavy-duty applications
Product HighlightsThis defrost control timer is crucial for maintaining optimal function in refrigeration systems.Product InformationStandard Information
Weight: 4.4625 pounds
Dimensions: 9 inches x 4.875 inches x 4.75 inches
Technical Specifications
Timer Type: Electro-mechanical
Voltage Rating: 120V
Switching Capability: 1 N.O., 1 N.C.
Current Rating: 40A
Horsepower Rating: 2HP
Defrost Frequency: 1 to 6 cycles/day
Adjustable Duration: 4 to 110 minutes
Trippers Pins: 4 included
Vendor: ALLPOINTS
Vendor Raw: ALLPOINTS
Product Type: DEFROST CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Weight: 4.4625 pounds
Dimensions: 9 inches x 4.875 inches x 4.75 inches
Timer Type: Electro-mechanical
Voltage Rating: 120V
Switching Capability: 1 N.O., 1 N.C.
Current Rating: 40A
Horsepower Rating: 2HP
Defrost Frequency: 1 to 6 cycles/day
Adjustable Duration: 4 to 110 minutes
Trippers Pins: 4 included
Tags: AI_Content, loc_2, Parcel
Source file: 421442 - defrost-control-1.json.json
| Weight | 4.4625 pounds |
|---|---|
| Dimensions | 9 inches x 4.875 inches x 4.75 inches |
| Timer Type | Electro-mechanical |
| Voltage Rating | 120V |
| Switching Capability | 1 N.O., 1 N.C. |
| Current Rating | 40A |
| Horsepower Rating | 2HP |
| Defrost Frequency | 1 to 6 cycles/day |
| Adjustable Duration | 4 to 110 minutes |
| Trippers Pins | 4 included |
