Product Description

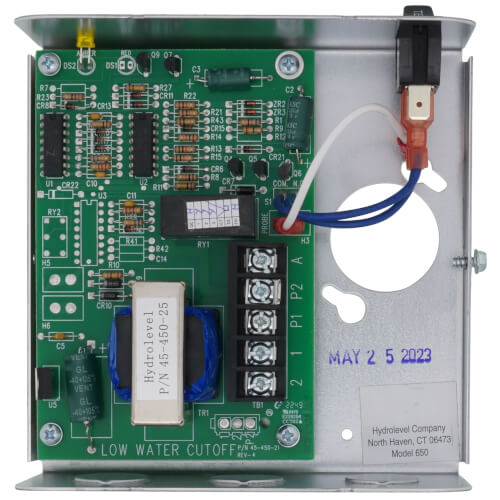

Hydrolevel 45-650 is an automatic low water cut-off device, paramount for oil boiler safety. It stops the burner when water levels are below safe thresholds and features an auto reset and test button functionality that ensures the unit is operating correctly without altering water levels.
Equipped with SPDT switch contacts capable of handling 5.8 FLA and 34.8 LRA.
Maximum operating pressure of 160 PSI and an automatic voltage adjustment of 120 VAC.
Incorporates LED indicator lights for real-time operational status.
Product Highlights
This model is designed to ensure the safety and maintenance of oil boilers by monitoring water levels and automatically resetting under safe conditions.
Product Information
Standard Information
Brand: Hydrolevel
Model: 650
Application: Oil boilers
Technical Specifications
Power Consumption: 4 VA
Switching Capacity: 5.8 FLA, 34.8 LRA
Pressure Rating: 160 psi
Voltage: 120 VAC
Connection Size: 3/4 inch NPT
Control Reset: Automatic
Enclosure: NEMA 1
Product DescriptionHydrolevel 45-650 is an automatic low water cut-off device, paramount for oil boiler safety. It stops the burner when water levels are below safe thresholds and features an auto reset and test button functionality that ensures the unit is operating correctly without altering water levels.
Equipped with SPDT switch contacts capable of handling 5.8 FLA and 34.8 LRA.
Maximum operating pressure of 160 PSI and an automatic voltage adjustment of 120 VAC.
Incorporates LED indicator lights for real-time operational status.
Product HighlightsThis model is designed to ensure the safety and maintenance of oil boilers by monitoring water levels and automatically resetting under safe conditions.Product InformationStandard Information
Brand: Hydrolevel
Model: 650
Application: Oil boilers
Technical Specifications
Power Consumption: 4 VA
Switching Capacity: 5.8 FLA, 34.8 LRA
Pressure Rating: 160 psi
Voltage: 120 VAC
Connection Size: 3/4 inch NPT
Control Reset: Automatic
Enclosure: NEMA 1
Vendor: HYDROLEVEL
Vendor Raw: HYDROLEVEL
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Brand: Hydrolevel
Model: 650
Application: Oil boilers
Power Consumption: 4 VA
Switching Capacity: 5.8 FLA, 34.8 LRA
Pressure Rating: 160 psi
Voltage: 120 VAC
Connection Size: 3/4 inch NPT
Control Reset: Automatic
Enclosure: NEMA 1
