Product Description

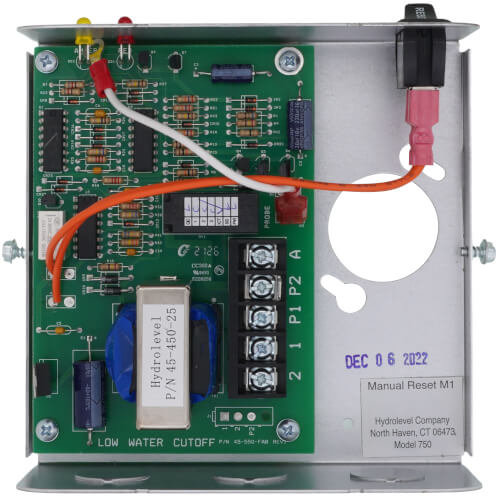

The Hydrolevel Safgard 750, with MPN 45-750, is a low water cut off designed for hot water boilers. It operates at 120 volts and includes a manual reset feature. This device interrupts power immediately in a low water condition to prevent boiler damage.
Application: Hot Water Boilers
Max Pressure: 160 PSI
Manual Reset
Product Highlights
This low water cut off is ideal for maintaining the safety and efficiency of your hot water boiler system. It automatically shuts off the burner in low water conditions and boasts a heavy-duty electro-mechanical design for longevity. Its manual reset feature ensures it does not lock out during power failures, and there's no maintenance needed due to its lack of moving parts.
Product Information
Standard Information
Brand: Hydrolevel
Model: 750
MPN: 45-750
Technical Specifications
Application: Hot Water Boilers
Voltage: 120V
Enclosure: NEMA 1
Max Water Temp: 250°F
Connection Size: 3/4
Ohms Sensitivity: 15,000 ohm
Max Ambient Temp: Room
Control Connection: NPT
Max Water Pressure: 160 PSI
Weight: 2.83 lbs
Max Steam Pressure: N/A
Control Reset: Manual
Product DescriptionThe Hydrolevel Safgard 750, with MPN 45-750, is a low water cut off designed for hot water boilers. It operates at 120 volts and includes a manual reset feature. This device interrupts power immediately in a low water condition to prevent boiler damage.
Application: Hot Water Boilers
Max Pressure: 160 PSI
Manual Reset
Product HighlightsThis low water cut off is ideal for maintaining the safety and efficiency of your hot water boiler system. It automatically shuts off the burner in low water conditions and boasts a heavy-duty electro-mechanical design for longevity. Its manual reset feature ensures it does not lock out during power failures, and there's no maintenance needed due to its lack of moving parts.Product InformationStandard Information
Brand: Hydrolevel
Model: 750
MPN: 45-750
Technical Specifications
Application: Hot Water Boilers
Voltage: 120V
Enclosure: NEMA 1
Max Water Temp: 250°F
Connection Size: 3/4
Ohms Sensitivity: 15,000 ohm
Max Ambient Temp: Room
Control Connection: NPT
Max Water Pressure: 160 PSI
Weight: 2.83 lbs
Max Steam Pressure: N/A
Control Reset: Manual
Vendor: HYDROLEVEL
Vendor Raw: HYDROLEVEL
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Brand: Hydrolevel
Model: 750
MPN: 45-750
Application: Hot Water Boilers
Voltage: 120V
Enclosure: NEMA 1
Max Water Temp: 250°F
Connection Size: 3/4
Ohms Sensitivity: 15,000 ohm
Max Ambient Temp: Room
Control Connection: NPT
Max Water Pressure: 160 PSI
Weight: 2.83 lbs
Max Steam Pressure: N/A
Control Reset: Manual
