Product Description

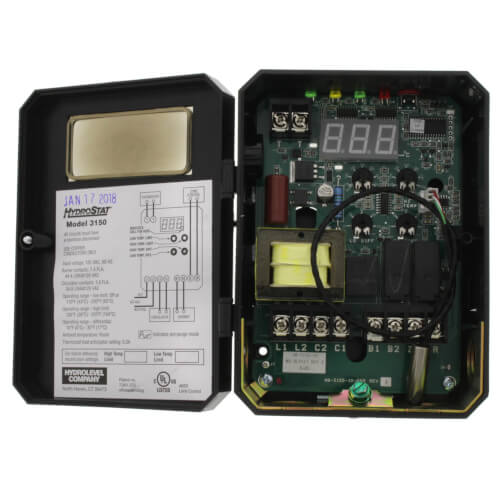

The Hydrolevel 48-3150 is a versatile control designed for oil boilers. This HydroStat provides temperature and low water cutoff functionality when correctly installed. It is compatible with standard immersion wells and can replace various Aquastat models.
Compatible with existing immersion wells.
Adds low water cutoff protection with the Hydrolevel Electro-Well.
Simple dial for temperature and differential settings.
Product Highlights
This HydroStat allows you to add low water protection to your heating system without extra installation costs.
Product Information
Standard Information
Brand: Hydrolevel
MPN: 48-3150
Technical Specifications
Burner Contacts: 7.4 FLA, 44.4 LRA @ 120 VAC
Circulator Contacts: 5.8 FLA, 34.8 LRA @ 120 VAC
Operating Range - Low Limit: OFF or 110°F - 200°F
Operating Range - High Limit: 100°F - 220°F
Operating Range - Low Differential: 10°F - 30°F
Operating Range - High Differential: 10°F - 30°F
Product DescriptionThe Hydrolevel 48-3150 is a versatile control designed for oil boilers. This HydroStat provides temperature and low water cutoff functionality when correctly installed. It is compatible with standard immersion wells and can replace various Aquastat models.
Compatible with existing immersion wells.
Adds low water cutoff protection with the Hydrolevel Electro-Well.
Simple dial for temperature and differential settings.
Product HighlightsThis HydroStat allows you to add low water protection to your heating system without extra installation costs.Product InformationStandard Information
Brand: Hydrolevel
MPN: 48-3150
Technical Specifications
Burner Contacts: 7.4 FLA, 44.4 LRA @ 120 VAC
Circulator Contacts: 5.8 FLA, 34.8 LRA @ 120 VAC
Operating Range - Low Limit: OFF or 110°F - 200°F
Operating Range - High Limit: 100°F - 220°F
Operating Range - Low Differential: 10°F - 30°F
Operating Range - High Differential: 10°F - 30°F
Vendor: HYDROLEVEL
Vendor Raw: HYDROLEVEL
Product Type: CONTROL BOARDS
Category: HVAC Equipment
Subcategory: Residential Heating Systems
Subchildcategory: Boilers
Availability Text: In Stock
Brand: Hydrolevel
MPN: 48-3150
Burner Contacts: 7.4 FLA, 44.4 LRA @ 120 VAC
Circulator Contacts: 5.8 FLA, 34.8 LRA @ 120 VAC
Operating Range - Low Limit: OFF or 110°F - 200°F
Operating Range - High Limit: 100°F - 220°F
Operating Range - Low Differential: 10°F - 30°F
Operating Range - High Differential: 10°F - 30°F
