Product Description

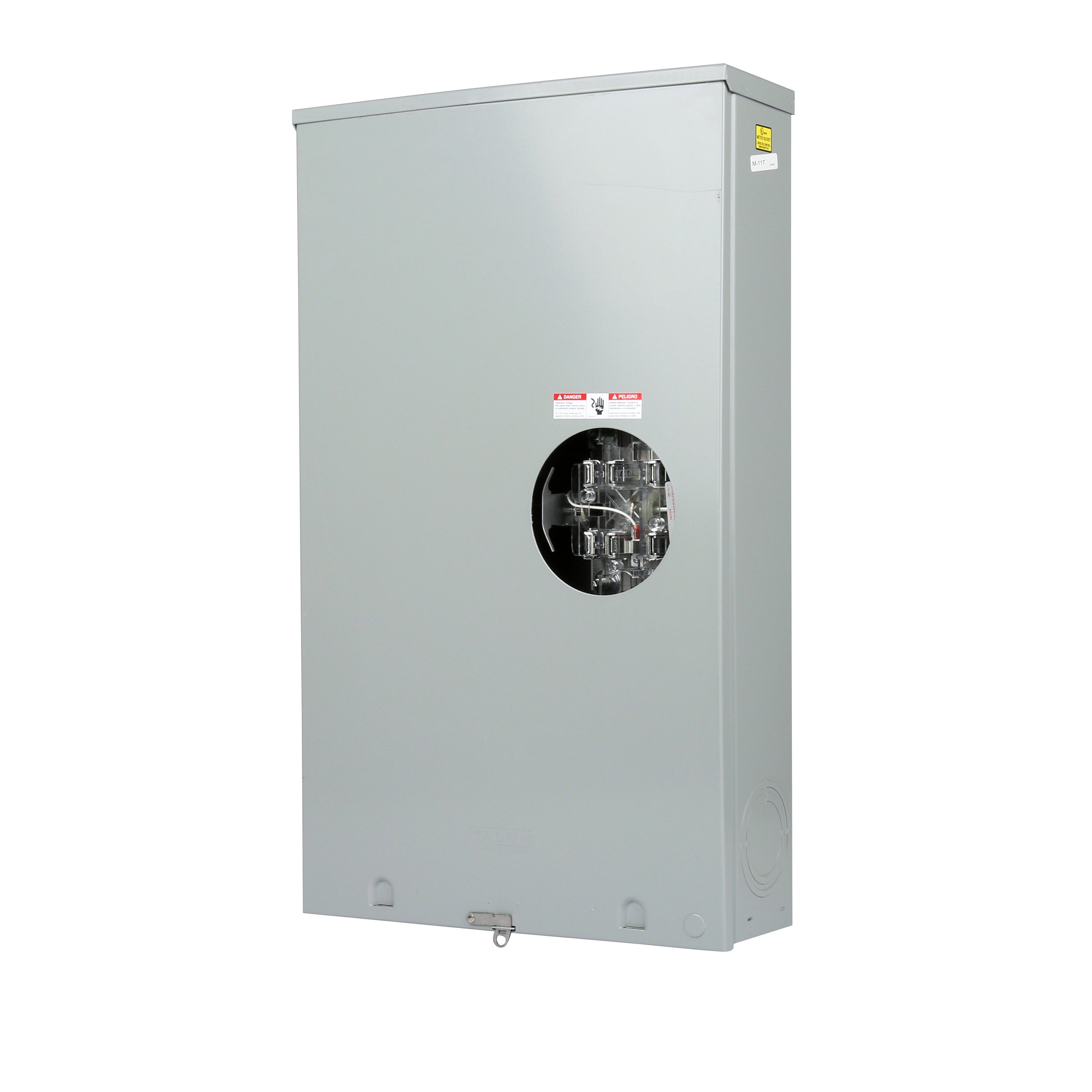

The Siemens meter socket, model number 48707-02, is designed for continuous duty operations. It has a 9-cutout configuration and supports up to 320 amps with a voltage rating of 600 VAC. This meter socket features an offset design that simplifies the wiring process.
Constructed from 14 gauge galvannealed steel
Utilizes plated copper current paths
Includes a track-resistant safety shield
Product Highlights
This product is suitable for both overhead and underground feed types, providing versatility in installation.
Product Information
Standard Information
Brand: Siemens
Part #: Q4271
Technical Specifications
Amperage Rating: 320 A
Cover Type: Ringless
Dimensions: 37 in H x 21 in W x 7 in D
Enclosure Type: NEMA 3R
Feed Type: Overhead/Underground
Frequency Rating: 50/60 Hz
Hub Size: 4.281 in
Hub Type: HD Coverplate
Mounting Type: Surface
Number of Jaws: 7
Phase: 3
Type: 9-Cutout 1-Position Type HQSW Continuous Duty
Voltage Rating: 600 VAC
Product DescriptionThe Siemens meter socket, model number 48707-02, is designed for continuous duty operations. It has a 9-cutout configuration and supports up to 320 amps with a voltage rating of 600 VAC. This meter socket features an offset design that simplifies the wiring process.
Constructed from 14 gauge galvannealed steel
Utilizes plated copper current paths
Includes a track-resistant safety shield
Product HighlightsThis product is suitable for both overhead and underground feed types, providing versatility in installation.Product InformationStandard Information
Brand: Siemens
Part #: Q4271
Technical Specifications
Amperage Rating: 320 A
Cover Type: Ringless
Dimensions: 37 in H x 21 in W x 7 in D
Enclosure Type: NEMA 3R
Feed Type: Overhead/Underground
Frequency Rating: 50/60 Hz
Hub Size: 4.281 in
Hub Type: HD Coverplate
Mounting Type: Surface
Number of Jaws: 7
Phase: 3
Type: 9-Cutout 1-Position Type HQSW Continuous Duty
Voltage Rating: 600 VAC
Vendor: SIEMENS
Vendor Raw: SIEMENS
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Brand: Siemens
Part #: Q4271
Amperage Rating: 320 A
Cover Type: Ringless
Dimensions: 37 in H x 21 in W x 7 in D
Enclosure Type: NEMA 3R
Feed Type: Overhead/Underground
Frequency Rating: 50/60 Hz
Hub Size: 4.281 in
Hub Type: HD Coverplate
Mounting Type: Surface
Number of Jaws: 7
Phase: 3
Type: 9-Cutout 1-Position Type HQSW Continuous Duty
Voltage Rating: 600 VAC
