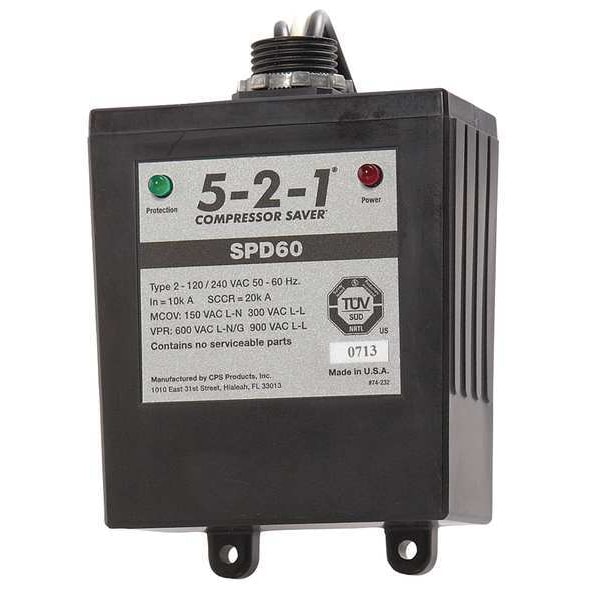

Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires
| CAD Available | Yes |
|---|---|
| Item | Surge Protection Device |
| Mounting Style | Surface |
| Phase | 1 |
| Voltage | 120/240V |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-G, L-N), 900V (L-L) |
| Number of Wires | 2 Wires |
| Filtering / Nonfiltering | Nonfiltering |
| Modes of Protection | L-G, L-N, L-L |
| Max. Surge Current Per Mode | 60 kA |
| Max. Surge Current per Phase | 60 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 20 kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 240V AC |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP67 |
| Enclosure Material | ABS |

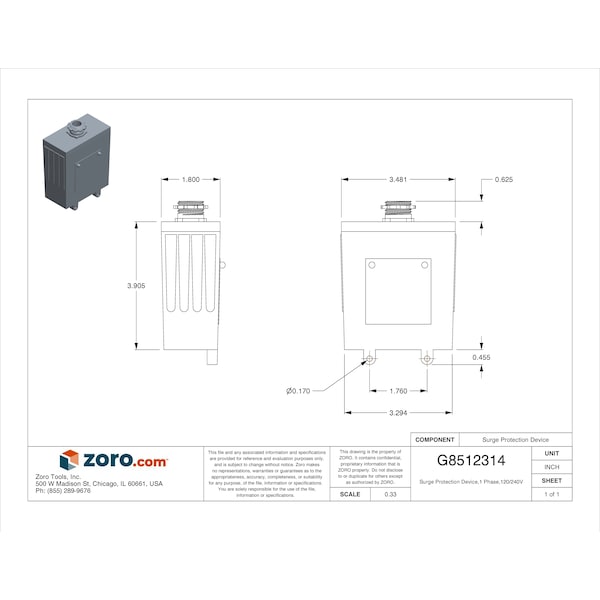

| Length | 4.98 in |
| Depth | 1.8 in |
| Width | 3.48 in |
| Wire Gauge | 12 AWG |
| Includes | LED Status Indicator |
| Standards | UL 1449 3rd Edition, Type 2 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Modular / Nonmodular | Nonmodular |
| Lightning Impulse Current | 60 kA |
| Joules | 720 |
| System Connection | Parallel |
| UL SPD Type | Type 2 |
| Max. Operating Temp. | 122 deg F |
| Color | Black |
| Min. Operating Temp. | 14 deg F |
| Amps | 60,000 |
| Chase Nipple Size | 1/2 in |
| Basic Material | Nonmetallic |
| Length (Straight Wireway) | 4.98 in |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Package Quantity | 1 |
