Product Description

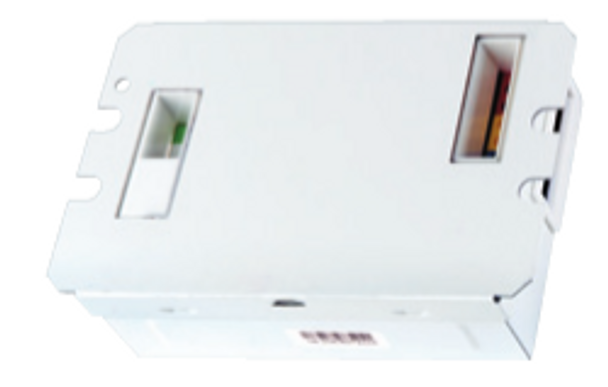

The LEDVANCE Sylvania QTP2x26/32/42CF/UNV DM (51843) is an electronic ballast that powers compact fluorescent lamps. It can operate two lamps ranging from twenty-six to forty-two watts. The ballast supports both DULUX D/E and T/E lamp types and ensures full lumen output.
Operates two 26W, 32W, or 42W CFL lamps.
Features universal input voltage (120-277V).
Employs programmed rapid start for effective operation.
Product Highlights
This electronic ballast is designed with dual entry and color-coded connectors, ensuring easy installation. It has a durable metal enclosure for added protection in various environments. Suitable for both indoor and outdoor installations, it meets various certification standards.
Product Information
Standard Information
Brand: Sylvania
Manufacturer Part Number: 51843
Technical Specifications
Input Voltage: 120-277V
Number of Lamps: 1, 2
Lamps Supported: (2) CF26W, (2) CF32W, (2) CF42W, (1) FT57W, (1) FT70W, (2) FT36DL, (2) FT40DL, (2) FPC40T5
Start Method: Programmed Rapid Start
Starting Temperature: -4°F, -20°C
Dimensions: 4.95 inches L x 2.93 inches W x 1.35 inches H
Certifications: Class P, CSA, NEMA Premium, Outdoor Type 1, Sound Rated: A, UL
Warranty: 5 Year
Fixture Type: Compact Fluorescent
Total Maximum Wattage: 26
Wiring Method: Plug-In Connectors
Total Harmonic Distortion (THD): < 10%
Sound Rating: A
Primary Lamp Type: 26W DD/E, T/E
Power Factor: > 0.98
Nominal Voltage (V): 120.00
Ballast Factor: 1
Product DescriptionThe LEDVANCE Sylvania QTP2x26/32/42CF/UNV DM (51843) is an electronic ballast that powers compact fluorescent lamps. It can operate two lamps ranging from twenty-six to forty-two watts. The ballast supports both DULUX D/E and T/E lamp types and ensures full lumen output.
Operates two 26W, 32W, or 42W CFL lamps.
Features universal input voltage (120-277V).
Employs programmed rapid start for effective operation.
Product HighlightsThis electronic ballast is designed with dual entry and color-coded connectors, ensuring easy installation. It has a durable metal enclosure for added protection in various environments. Suitable for both indoor and outdoor installations, it meets various certification standards.Product InformationStandard Information
Brand: Sylvania
Manufacturer Part Number: 51843
Technical Specifications
Input Voltage: 120-277V
Number of Lamps: 1, 2
Lamps Supported: (2) CF26W, (2) CF32W, (2) CF42W, (1) FT57W, (1) FT70W, (2) FT36DL, (2) FT40DL, (2) FPC40T5
Start Method: Programmed Rapid Start
Starting Temperature: -4°F, -20°C
Dimensions: 4.95 inches L x 2.93 inches W x 1.35 inches H
Certifications: Class P, CSA, NEMA Premium, Outdoor Type 1, Sound Rated: A, UL
Warranty: 5 Year
Fixture Type: Compact Fluorescent
Total Maximum Wattage: 26
Wiring Method: Plug-In Connectors
Total Harmonic Distortion (THD): < 10%
Sound Rating: A
Primary Lamp Type: 26W DD/E, T/E
Power Factor: > 0.98
Nominal Voltage (V): 120.00
Ballast Factor: 1
Vendor: LEDVANCE
Vendor Raw: LEDVANCE
Product Type: CONTROL BOARDS
Availability Text: In Stock
Brand: Sylvania
Manufacturer Part Number: 51843
Input Voltage: 120-277V
Number of Lamps: 1, 2
Lamps Supported: (2) CF26W, (2) CF32W, (2) CF42W, (1) FT57W, (1) FT70W, (2) FT36DL, (2) FT40DL, (2) FPC40T5
Start Method: Programmed Rapid Start
Starting Temperature: -4°F, -20°C
Dimensions: 4.95 inches L x 2.93 inches W x 1.35 inches H
Certifications: Class P, CSA, NEMA Premium, Outdoor Type 1, Sound Rated: A, UL
Warranty: 5 Year
Fixture Type: Compact Fluorescent
Total Maximum Wattage: 26
Wiring Method: Plug-In Connectors
Total Harmonic Distortion (THD): < 10%
Sound Rating: A
Primary Lamp Type: 26W DD/E, T/E
Power Factor: > 0.98
Nominal Voltage (V): 120.00
Ballast Factor: 1
Tags: AI_Content, loc_2, Parcel
Source file: 51843 - ledvance-51843-ledvance-sylvania-qtp2x26-32-42cf-unv-dm-electronic-ballast.json.json
| Brand | Sylvania |
|---|---|
| Manufacturer Part Number | 51843 |
| Input Voltage | 120-277V |
| Number of Lamps | 1, 2 |
| Lamps Supported | (2) CF26W, (2) CF32W, (2) CF42W, (1) FT57W, (1) FT70W, (2) FT36DL, (2) FT40DL, (2) FPC40T5 |
| Start Method | Programmed Rapid Start |
| Starting Temperature | -4°F, -20°C |
| Dimensions | 4.95 inches L x 2.93 inches W x 1.35 inches H |
| Certifications | Class P, CSA, NEMA Premium, Outdoor Type 1, Sound Rated: A, UL |
| Warranty | 5 Year |
| Fixture Type | Compact Fluorescent |
| Total Maximum Wattage | 26 |
| Wiring Method | Plug-In Connectors |
| Total Harmonic Distortion (THD) | < 10% |
| Sound Rating | A |
| Primary Lamp Type | 26W DD/E, T/E |
| Power Factor | > 0.98 |
| Nominal Voltage (V) | 120.00 |
| Ballast Factor | 1 |
| Vendor | LEDVANCE |
| Vendor Raw | LEDVANCE |
| SKU | 51843 |
| Tipo de producto | CONTROL BOARDS |
| Disponibilidad | In Stock |
| Mensaje de envío | Ships Same Day if Ordered by 12 pm |
| Moneda | USD |
| Handle Shopify | ledvance-51843-ledvance-sylvania-qtp2x26-32-42cf-unv-dm-electronic-ballast |
| Shopify Product ID | 9930922033458 |
| Peso | 15.07 lb |
| Peso gramos | 6836 |
| Código de barras | 046135518430 |
| Tags | AI_Content, loc_2, Parcel |
