Product Description

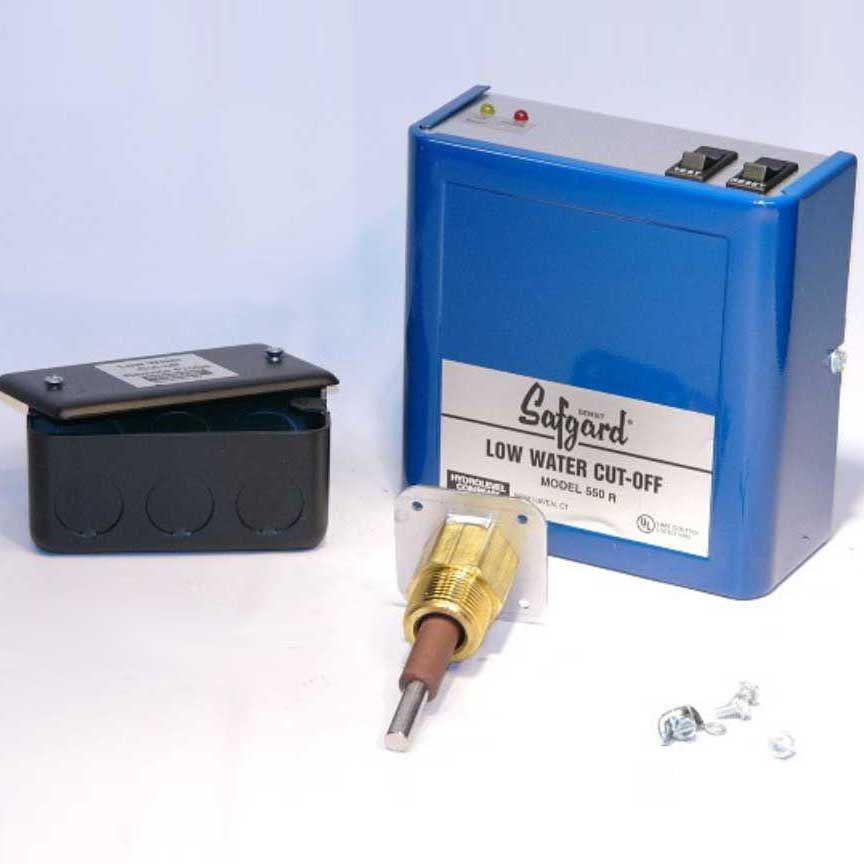

The Hydrolevel 550R is a low water cut-off device designed for hot water and steam boilers. It operates at one hundred twenty volts and features a manual reset function. Upon detecting low water levels, it immediately interrupts power to prevent damage.
Manual reset after thirty seconds.
Includes a test button and indicator light.
Designed for remote mounting with EL1214-R sensing probe.
Product Highlights
This unit is essential for maintaining safe boiler operations by preventing dry firing.
Product Information
Standard Information
Brand: Hydrolevel
MPN: 550R
Technical Specifications
Application: Hot Water Boilers, Steam Boilers
Connection Size: 3/4 inch
Control Connection: NPT
Max Steam Pressure: 250 psi
Max Water Pressure: 250 psi
Max Water Temp: 250 degrees Fahrenheit
Max Ambient Temp: 250 degrees Fahrenheit
Voltage: 120V
Installation Method: Direct to Boiler Tappings
Control Reset: Manual
Enclosure: NEMA 1
Weight: 4.42 lbs
Dimensions: 8.05 inches (L) x 12.85 inches (W) x 12.55 inches (H)
