Product Description

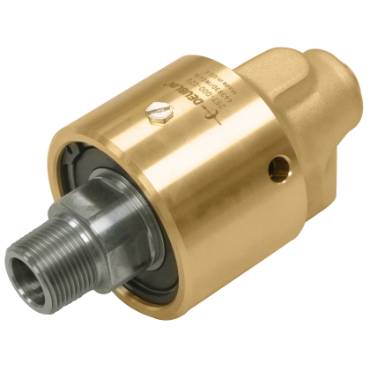

The Deublin Co. 557-000-001 Water Rotary Unit is designed for reliable performance in various water applications. This rotary union features advanced sealing technology suitable for diverse environments. It is ideal for industries such as printing, paper, rubber, plastics, and steel processing.
Utilizes silicone carbide to carbon graphite mechanical seals
Available in Mono-Flow and Duo-Flow configurations
Seals are replaceable and suitable for U.S. and metric thread specifications
Product Highlights
This rotary unit offers robust functionality with a maximum water pressure of 150 psi. The forged brass housing adds durability, while the stainless steel shaft material ensures longevity. Its compact size makes it easy to install in tight spaces.
Product Information
Standard Information
Brand: Deublin Co.
Part Number: 100169093
Technical Specifications
Housing Material: Forged Brass
Right / Left Hand: Right Hand
RPM [Max]: 1,500 rpm
Assembled Length: 8.5 inches
Inlet Port: 1.5 inches
Outlet Port Type: NPT
Inlet Port Type: NPT
Unit Size: 1.5 inches
Shaft Thread Size: 1.5 inches NPT
Shaft Extension Length: 1.1875 inches
Flow Type: Mono-Flow
Front of Body to Port Centerline: 6 inches
Series: 57 Series
Shaft Material: Stainless Steel
Weight: 12.55 lb
Product DescriptionThe Deublin Co. 557-000-001 Water Rotary Unit is designed for reliable performance in various water applications. This rotary union features advanced sealing technology suitable for diverse environments. It is ideal for industries such as printing, paper, rubber, plastics, and steel processing.
Utilizes silicone carbide to carbon graphite mechanical seals
Available in Mono-Flow and Duo-Flow configurations
Seals are replaceable and suitable for U.S. and metric thread specifications
Product HighlightsThis rotary unit offers robust functionality with a maximum water pressure of 150 psi. The forged brass housing adds durability, while the stainless steel shaft material ensures longevity. Its compact size makes it easy to install in tight spaces.Product InformationStandard Information
Brand: Deublin Co.
Part Number: 100169093
Technical Specifications
Housing Material: Forged Brass
Right / Left Hand: Right Hand
RPM [Max]: 1,500 rpm
Assembled Length: 8.5 inches
Inlet Port: 1.5 inches
Outlet Port Type: NPT
Inlet Port Type: NPT
Unit Size: 1.5 inches
Shaft Thread Size: 1.5 inches NPT
Shaft Extension Length: 1.1875 inches
Flow Type: Mono-Flow
Front of Body to Port Centerline: 6 inches
Series: 57 Series
Shaft Material: Stainless Steel
Weight: 12.55 lb
